>>>>>型號:3500/33 16通道繼電器模塊 全高模塊
【功能描述】

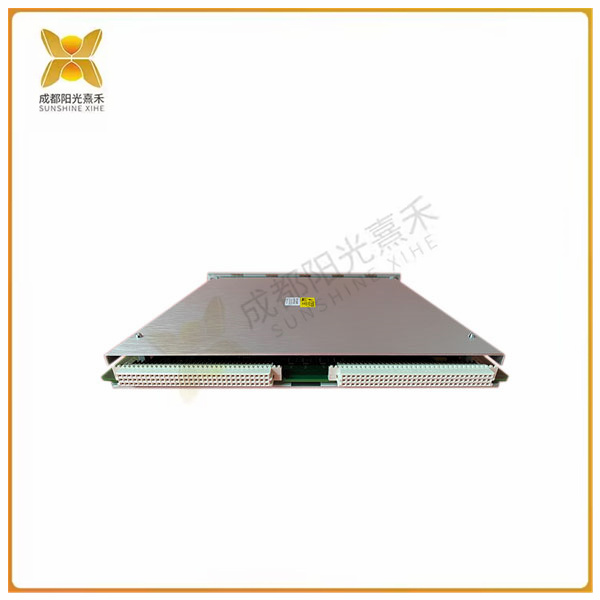

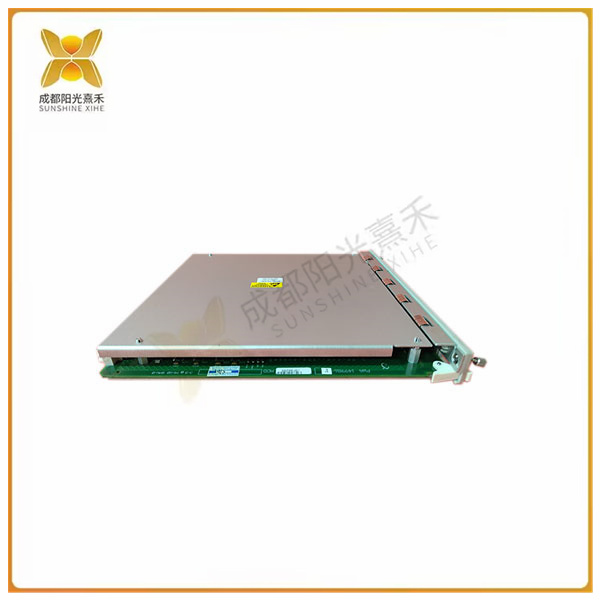

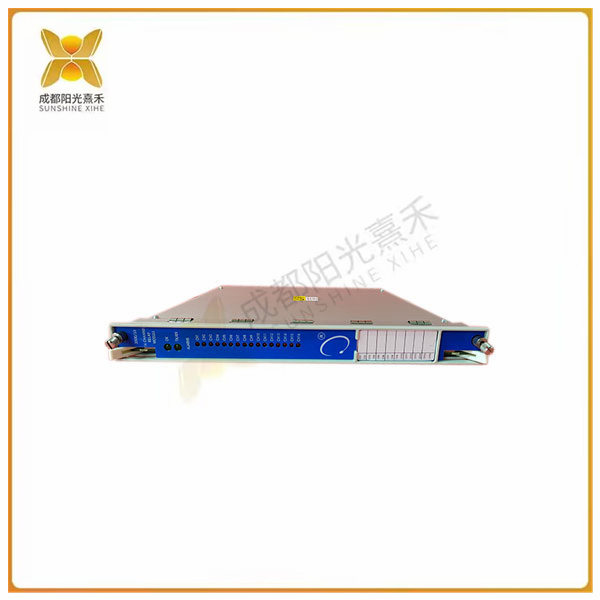

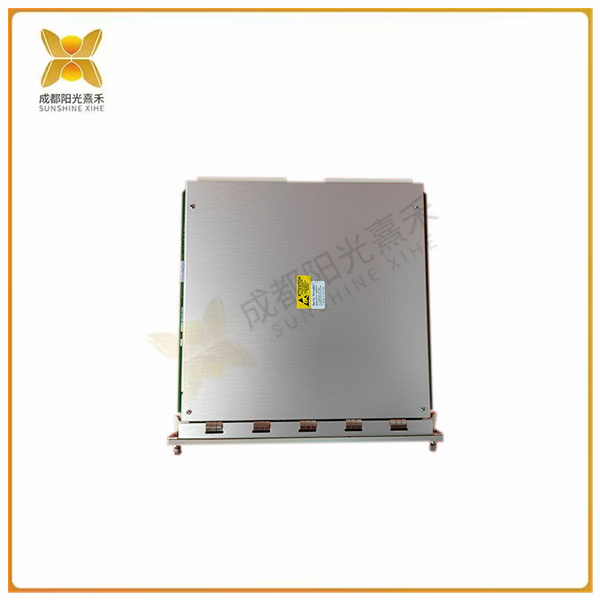

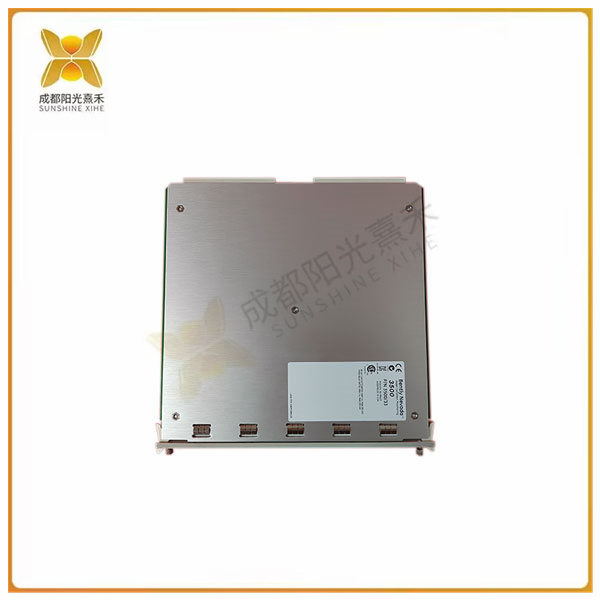

Bently Nevada 3500/33本特利16通道繼電器模塊
描述
16通道繼電器模塊是一個全高模塊，提供16個繼電器
產出。任何數量的16通道繼電器模塊可以放置在任何
機架接口模塊右側的插槽。16通道的每個輸出
繼電器模塊可以獨立編程，以執行所需的表決
邏輯。
16通道繼電器模塊上使用的每個繼電器都包括“報警驅動邏輯”。
用于報警驅動邏輯的編程使用AND和or邏輯，并且可以使用
報警輸入(警報和危險狀態)、不正?；騺碜?/p>
機架中的任意監控通道或任意監控通道組合。用戶
使用3500框架配置軟件對此報警驅動進行編程，以滿足
應用程序的特定需求。
注:三模冗余(TMR)應用必須使用3500/34 TMR繼電器模塊。
3500/20-BENTLY NEVADA-接口模塊3500系列
2201/03-02-本特利內華達-系統監視器
330750-20-BENTLY NEVADA-信號發射器高溫速度計
>>>>>型號:3500/33 16通道繼電器模塊 全高模塊
【英文介紹】
Bently Nevada 3500/33 Bentley 16-channel relay module
Description
The 16 channel relay module is a full height module that provides 16 relays
Output. Any number of 16-channel relay modules can be placed in any
The slot on the right of the rack interface module. 16 channels for each output
The relay module can be programmed independently to perform the required voting
Logic.
Each relay used on the 16-channel relay module includes "alarm drive logic".
Programming for alarm driver logic uses AND and or logic and can be used
Alarm input (alarm and danger status), abnormal or from
Any monitoring channel or any combination of monitoring channels in the rack. user
This alarm driver is programmed using 3500 framework configuration software to meet
Application specific requirements.
Note: 3500/34 TMR relay modules must be used for three-mode redundancy (TMR) applications.
3500/20-BENTLY NEVADA- Indicates the interface module 3500 series
2201/03-02- Bentley Nevada - System Monitor
330750-20-BENTLY NEVADA- Signal transmitter high temperature velocity meter
