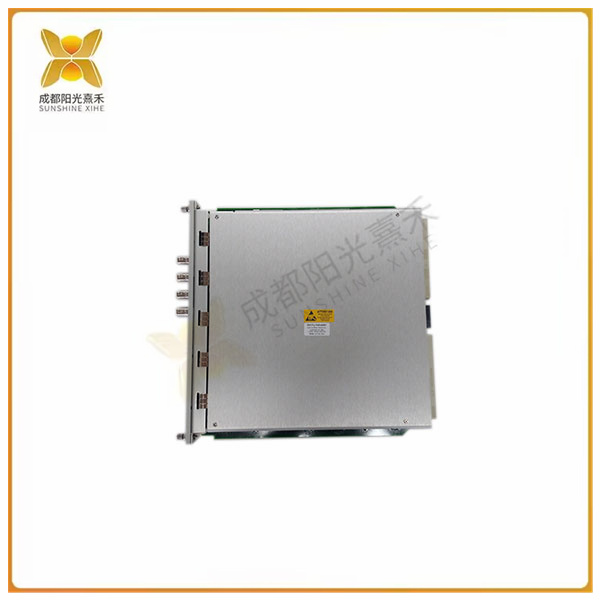

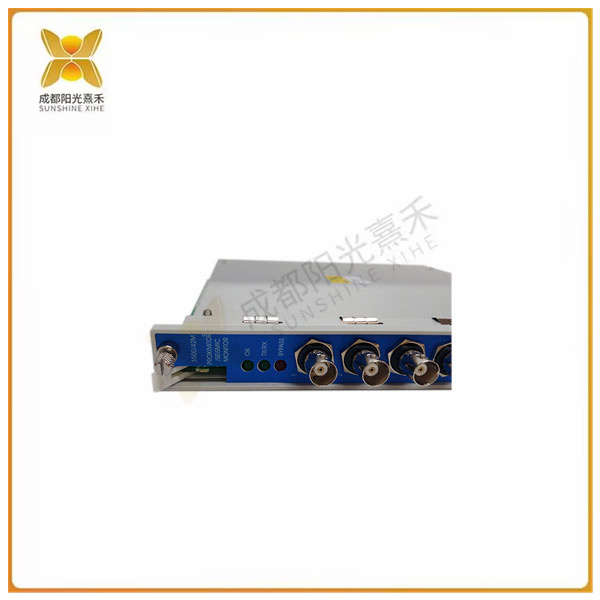

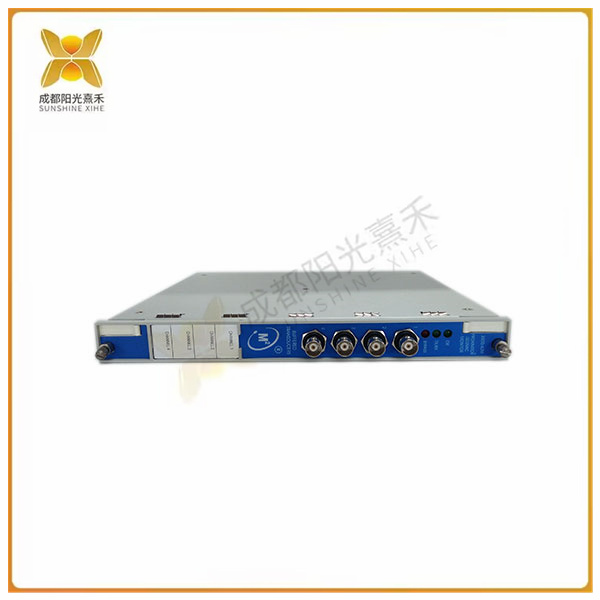

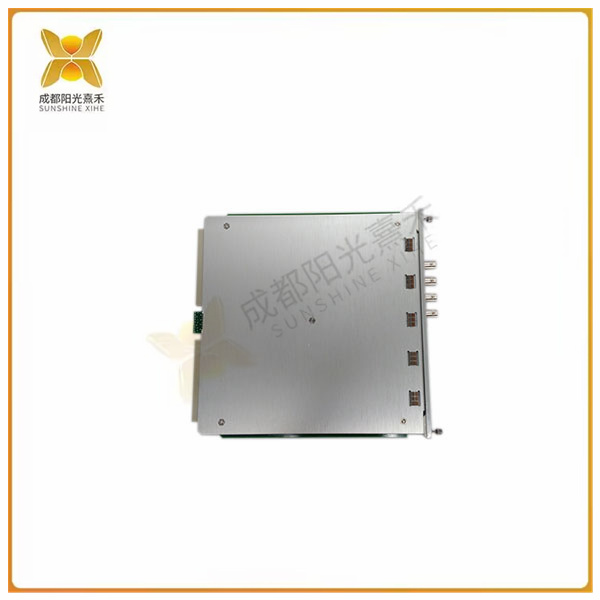

>>>>>型號:3500/42M  近震器/地震監測儀 （4） 通道監視器

【功能描述】

特征：

（4） 通道監視器

接受來自接近傳感器和地震傳感器的輸入

機械保護

提供必要的機器信息

GE / Bently Nevada 3500/42M 系列近似/地震監測儀是四通道監測器，接受來自接近和地震傳感器的輸入，對信號進行調節以提供各種振動和位置測量，并將調節信號與用戶可編程報警進行比較。

您可以使用 3500 機架配置軟件對每個通道進行編程，以執行以下功能：徑向振動、推力位置、差動膨脹、偏心率、REBAM、加速度、速度、絕對軸和圓形接受區域。

3500/42M 接近/地震監測儀的主要目的是通過連續將監測參數與配置的報警設定值進行比較來提供機械保護，以驅動報警。這些模塊還為操作和維護人員提供必要的機器信息。

監控通道成對設置，最多可以同時執行兩個指定的功能。例如，通道 1 和 2 可以執行一個功能，而通道 3 和 4 執行另一個或相同的功能。

Proximitor Seismic Monitor 通過實時比較監測參數與選定的警報設置點并觸發警報來保護機械。它通知操作和維護人員有關關鍵機器信息的信息。

根據安排，每個通道通常會調節其輸入信號以產生一組靜態值。可以為任何當前靜態值建立警報設置點，也可以為其中任意兩個設置危險設置點。

使用機架配置軟件為監視器測量的任何值設置警報級別，并為監視器測量的任意兩個值設置危險設置點。對于每個測量值，警報可以設置為滿量程的 0 到 100%。當滿量程范圍超過傳感器的范圍時，設定點受傳感器范圍的限制

 >>>>>型號:3500/42M  近震器/地震監測儀 （4） 通道監視器

【英文介紹】

Features:

(4) Channel monitor

Accepts input from proximity sensors and seismic sensors

Mechanical protection

Provide necessary machine information

The GE/Bently Nevada 3500/42M series of approximation/seismic monitors is a four-channel monitor that accepts input from proximity and seismic sensors, adjusts the signal to provide a variety of vibration and position measurements, and compares the adjusted signal to user-programmable alarms.

You can program each channel with 3500 rack configuration software to perform the following functions: radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, speed, absolute axis, and circular acceptance area.

The main purpose of the 3500/42M proximity/seismic monitor is to provide mechanical protection by continuously comparing the monitoring parameters to the configured alarm Settings to drive the alarm. These modules also provide necessary machine information for operation and maintenance personnel.

The monitoring channels are set up in pairs and can perform up to two specified functions simultaneously. For example, channels 1 and 2 May perform one function, while channels 3 and 4 perform another or the same function.

Proximitor Seismic Monitor protects machinery by comparing monitoring parameters in real time with selected alarm setting points and triggering alarms. It informs operations and maintenance personnel of information about critical machine information.

According to the arrangement, each channel usually adjusts its input signal to produce a set of static values. You can create an alert setting point for any current static value, and you can set a danger setting point for any two of them.

Use the rack configuration software to set an alarm level for any value measured by the monitor and a danger setting point for any two values measured by the monitor. For each measurement, the alarm can be set to 0 to 100% of the full scale. When the full scale range exceeds the range of the sensor, the set point is limited by the range of the sensor
