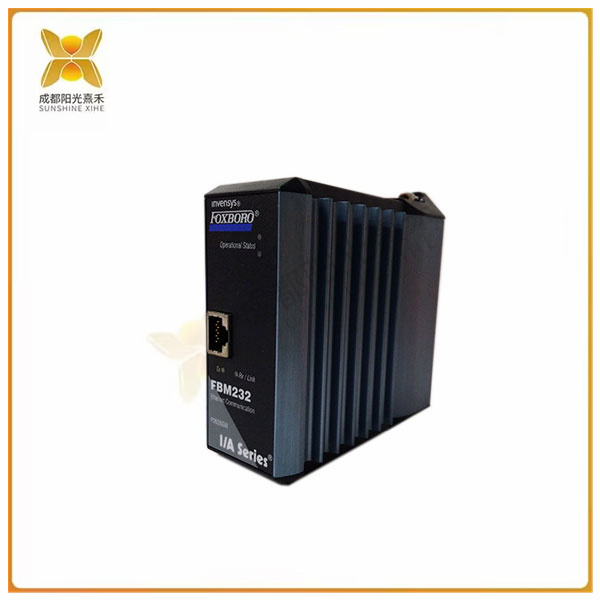

>>>>>型號:FBM232 以太網傳輸速率到/從現場設備 與多達64個現場設備通信
【功能描述】
FBM232的主要特點是:
?10 Mbps或100 Mbps以太網傳輸速率到/從現場設備
?與多達64個現場設備通信
?I/O軟件驅動程序可從可用協議庫中下載
?多達2000個DCI塊連接
?使用以太網將現場設備數據集成到Foxboro DCS控制數據庫中
連接
?現場安裝
G3類(惡劣)環境。
I / O驅動程序
這種現場總線模塊(FBM)是一種通用的以太網硬件模塊，其不同之處在于
可以加載軟件驅動程序。這些驅動程序配置FBM識別a
設備使用的特定協議。一些軟件驅動程序是標準的
產品。可以開發其他定制驅動程序來滿足特定需求。
這些驅動程序是動態下載到FBM232與軟件代碼
專門設計的接口與第三方設備的協議。的
每個驅動程序的配置過程和軟件要求都是獨一無二的
被集成到系統中的設備
>>>>>型號:FBM232 以太網傳輸速率到/從現場設備 與多達64個現場設備通信
【英文介紹】
Key features of the FBM232 are:
? 10 Mbps or 100 Mbps Ethernet network transmission rate to/from field device
? Communicates with up to 64 field devices
? I/O software driver is downloadable from a library of available protocols
? Up to 2000 DCI block connections
? Integrates field device data into a Foxboro DCS control database using Ethernet
connectivity
? Field mounted
? Class G3 (harsh) environments.
I/O Drivers
This fieldbus module (FBM) is a generic Ethernet hardware module in which different
software drivers can be loaded. These drivers configure the FBM to recognize a
particular protocol used by the device. Several of the software drivers are standard
product offerings. Other custom drivers can be developed to meet specific needs.
These drivers are dynamically downloaded to the FBM232 with software code
specifically designed to interface with the third party device’s protocol. The
configuration procedures and the software requirements for each driver are unique to
the device(s) being integrated into the system
