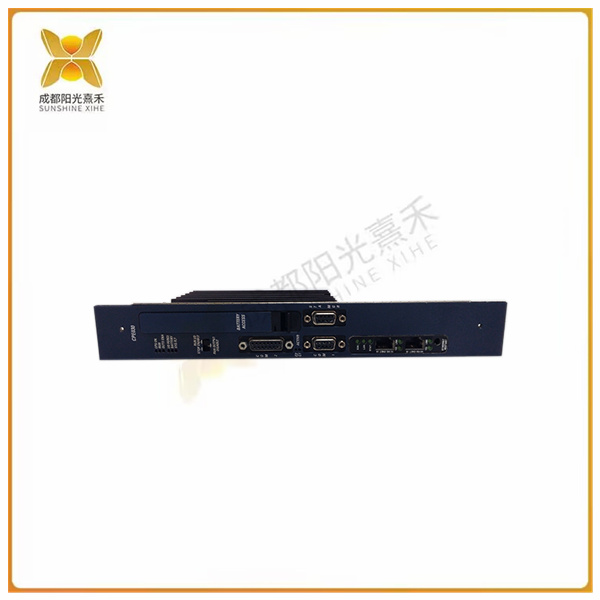

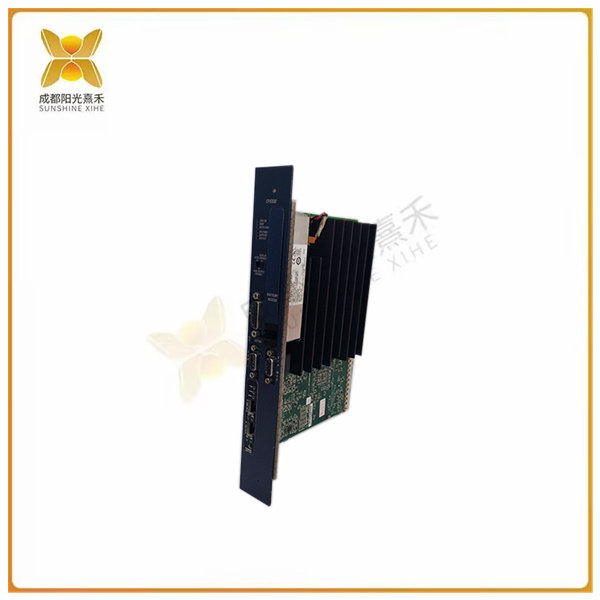

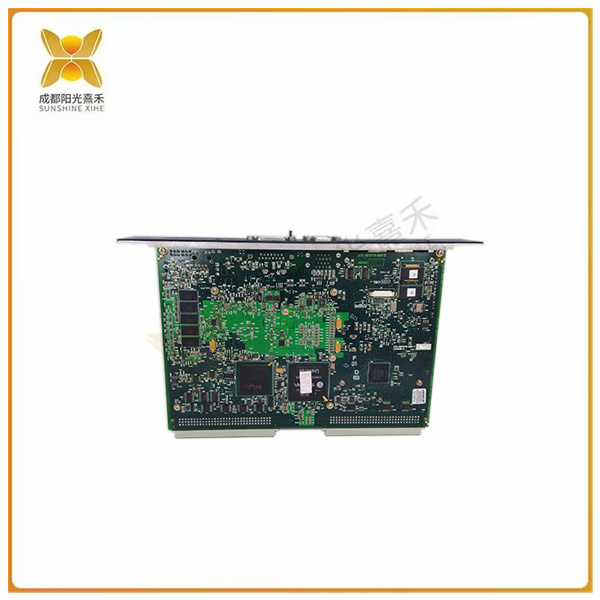

>>>>>型號:IC698CPE030 中央處理器 可配置數據/程序存儲器

【功能描述】

IC698CPE030是GE Fanuc為RX7i系列生產的600 MHz CPU（中央處理器）。該IC698CPE030的部分功能包括電池供電的用戶存儲器和非易失性數據閃存、大容量存儲器訪問、可配置數據/程序存儲器和自動定位符號變量等。該CPU支持90-70系列離散和模擬I/O、通信和其他模塊，包括VME模塊。

該CPU配備Pentium-M微處理器。它具有64 MB的用戶內存和用戶閃存。作為RX7i CPU，IC698CPE030配置為實時控制流程和物料搬運結構。IC698CPE030單元通過采用VME64標準格式的機架安裝背板與I/O和智能選件模塊進行通信。為了與編程器和不同的HMI設備進行通信，使用了嵌入式以太網端口。使用SNP Slave協議的串行端口也可用于通信。

通電后，IC698CPE030開始進行完整的自診斷檢查。在初始化過程中，LED燈將按特定順序發出ON或OFF狀態。初始化過程完成后，OK LED燈將閃爍，然后亮起。

為避免內存丟失，例行維護步驟應由用戶啟動。鋰電池組（第IC698ACC701部分）應按計劃更換。這很重要，因?yàn)镃PU的電池維護程序和數據存儲器。此外，如果斷電，它會運行日歷時鐘。

該CPU標配三個隔離串行端口：RS-485串行端口、RS-232串行端口和RS-232以太網站管理器串行端口。

 >>>>>型號:IC698CPE030 中央處理器 可配置數據/程序存儲器

【英文介紹】

The IC698CPE030 is a 600 MHz CPU (central processing unit) produced by GE Fanuc for the RX7i series. Some of the features of the IC698CPE030 include battery-powered user memory and non-volatile data flash memory, mass memory access, configurable data/program memory, and automatic positioning of symbol variables. The CPU supports the 90-70 series discrete and analog I/O, communication, and other modules, including the VME module.

The CPU is equipped with a Pentium-M microprocessor. It has 64 MB of user memory and user flash memory. As an RX7i CPU, the IC698CPE030 is configured for real-time control of processes and material handling structures. The IC698CPE030 unit communicates with the I/O and smart option modules through a rack-mounted backplane in the VME64 standard format. In order to communicate with programmers and different HMI devices, an embedded Ethernet port is used. Serial ports using the SNP Slave protocol can also be used for communication.

When powered on, the IC698CPE030 begins a complete self-diagnostic examination. During initialization, the LED lights will emit ON or OFF states in a specific order. After the initialization process is complete, the OK LED light will flash and then light up.

To avoid memory loss, routine maintenance should be initiated by users. The lithium battery pack (Part IC698ACC701) shall be replaced as scheduled. This is important because of the CPU's battery maintenance program and data storage. In addition, it will run the calendar clock if the power is off.

The CPU comes standard with three isolated serial ports: RS-485 serial port, RS-232 serial port, and RS-232 Ethernet web Manager serial port.
