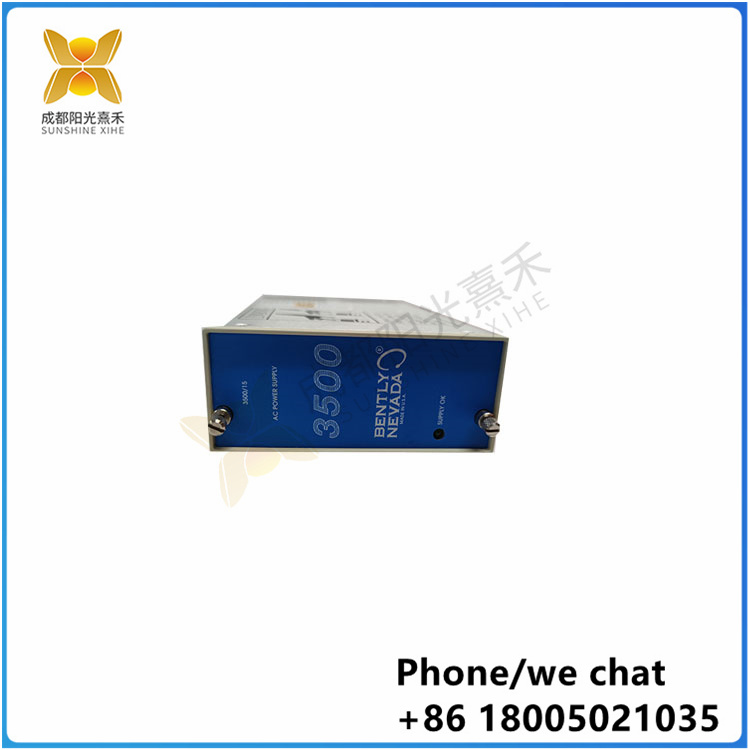

3500/15E 164949-01 | IC200GBI001 | 交流/直流電源模塊|
3500/15E 164949-01 是一款由本特利（Bently Nevada）生產的交流/直流電源模塊，它具有以下特性：
模塊化設計：這是一個半高模塊，必須安裝在機架左側的指定插槽中 。
冗余電源支持：當兩個電源模塊安裝在機架中時，下面的電源模塊作為主電源，上部的電源模塊作為備用電源 。
：3500/15E 電源模塊可以接受多種輸入電壓，并將其轉換為其他 3500 模塊可以接受的電壓 。
輸入電壓范圍：通用交流輸入電壓為 110 至 220 Vac，85 至 264 VAC RMS，120 至 373 VAC；高壓直流 (HVDC) 輸入電壓為 88 至 140 Vdc 。
工作溫度范圍：-30°C 至 +65°C 。
應用領域：廣泛應用于工業自動化和控制領域，尤其是在機械狀態監控系統中
安裝在機架左側的指定槽位。The3500
機架可以包含一個或兩個電源
combinationsof ACandDC。這兩種供應方式都可以實現電力供應。
當兩個電源安裝在機架上時，另一個電源安裝在機架上
較低的槽作為主要供應，和其他在上部
插槽作為備用電源。如果安裝，第二個電源是
thebackupfortheprimary。
拔插電源模塊不允許
只要是第二個電源，就會中斷設備的運行安裝。
The3500/15PowerSupply acceptsawiderangeofinput
電壓并將其轉換為可接受的電壓
other3500modules。下面簡要powersuppliesareavailable
3500系列機械保護系統:
n LegacyACPower
n通用交流電源
n高壓直流電源
n低壓直流電源
The 3500/15E 164949-01 is an AC/DC power module manufactured by Bently Nevada with the following features:
Modular design: This is a semi-tall module that must be installed in a designated slot on the left side of the rack.
Redundant power supply: When two power modules are installed in a rack, the lower power module acts as the active power supply, and the upper power module acts as the standby power supply.
Power conversion capability: The 3500/15E power module can accept a variety of input voltages and convert them to voltages that other 3500 modules can accept.
Input voltage range: General AC input voltage is 110 to 220 Vac, 85 to 264 VAC RMS, 120 to 373 VAC; High voltage direct current (HVDC) input voltages range from 88 to 140 Vdc.
Operating temperature range: -30°C to +65°C.
Applications: Widely used in the field of industrial automation and control, especially in mechanical condition monitoring systems
Install it in the specified slot on the left of the rack. The3500
The rack can contain one or two power supplies
combinationsof ACandDC. Both of these supply modes can make electricity available.
When two power supplies are installed on the rack, the other power supply is installed on the rack
The lower slot serves as the main supply, and the others are in the upper part
The slot serves as a backup power supply. If installed, the second power supply is
thebackupfortheprimary.
Removing and inserting a power module is not allowed
As long as it is a second power supply, it will interrupt the operation and installation of the device.
The3500/15PowerSupply acceptsawiderangeofinput
Voltage and convert it to an acceptable voltage
other3500modules. Here is a brief powersuppliesareavailable
3500 Series Mechanical Protection System:
n LegacyACPower
n Universal AC power supply
n High voltage DC power supply
n Low voltage DC power supply
