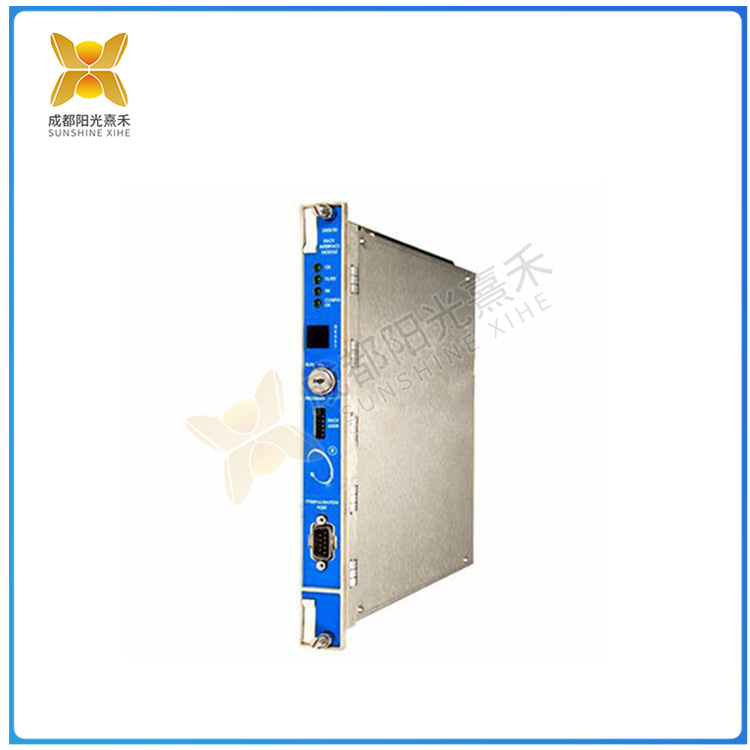

>>>>>型號:3500/22-01-02-00 模擬模塊輸入
【功能描述】
3500/22-01-02-00 強烈建議將雙絞屏蔽儀表電纜用于模擬模塊輸入或輸出信號連接。
屏蔽層的正確接地也很重要。對于最大值電氣噪聲抑制，電纜屏蔽層應僅在電纜的一端接地。對于輸入模塊，通常最好將噪聲最大的端接地環境（通常是現場設備端）。3500/22-01-02-00 對于輸出模塊，模塊端接地。
從用戶 3500/22-01-02-00 設備連接到模擬模塊時，將端子擰在可拆卸的 20 端子連接器塊安裝在模塊的前面。實際終端使用的模塊在各個模塊的規格中顯示。
>>>>>型號:3500/22-01-02-00 模擬模塊輸入
【英文介紹】
3500/22-01-02-00 A twisted-shielded instrument cable is strongly recommended for analog module input or output signal connection.
Proper grounding of the shield is also important. For maximum electrical noise suppression, the cable shield should be grounded at only one end of the cable. For input modules, it is usually best to ground the noisiest end to the environment (usually the field device end). 3500/22-01-02-00 For the output module, the module terminal is grounded.
When connecting a device from User 3500/22-01-02-00 to the analog module, screw the terminals onto the removable 20-terminal connector block mounted on the front of the module. The modules used by the actual terminal are shown in the specifications of each module.
