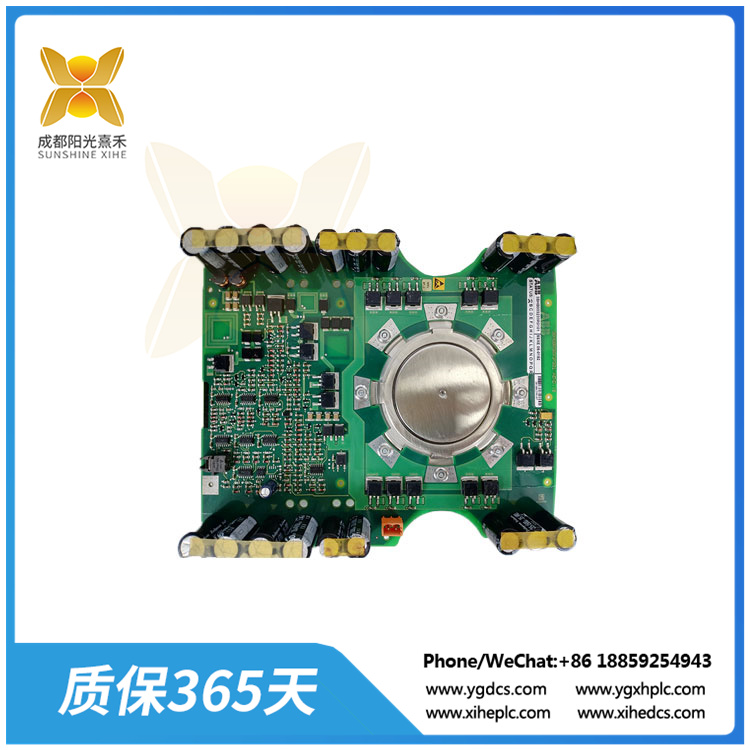

5SHY3545L0016 3BHB020720R0002 3BHE039203R0101 GVC736CE101 | 晶閘管(IGCT)模塊
型號：5SHY3545L0014 3BHB013085R0001
類別：晶閘管(IGCT)模塊
成色：全新/非全新
貨期：現貨
質保：一年
快遞：順豐/德邦
付款：電匯， 西聯匯款
晶閘管(IGCT)模塊，即集成門極換流晶閘管模塊，是一種結合了晶體管的穩定關斷能力和晶閘管低通態損耗優點的混合型電力半導體器件。IGCT模塊通過將GTO(門極可關斷晶閘管)芯片與反并聯二極管和柵極驅動電路集成在一起，再與其柵極驅動器在外圍以低電感方式連接，實現了高壓大功率低頻交流器的優選方案。IGCT模塊具有電流大、電壓高、開關頻率高、可靠性高、結構緊湊、損耗低等特點，且成本低、成品率高，具有很好的應用前景。
二、工作原理
5SHY3545L0014 3BHB013085R0001 IGCT模塊的工作原理是通過對內部PN結區域施加正向電壓，將PN結區域中的空穴和電子注入到N型感應層和P型感應層中，形成感應電流。同時，在IGCT的門控電極上施加一定的電壓信號，通過控制PN結區域中的空穴和電子的復合和推移，控制整個器件的導通和截止。具體來說，當IGCT的陰極接地、陽極接正電壓時，PN結區域中的空穴和電子被注入到N型感應層和P型感應層中，形成感應電流。如果在門極上施加一定的正向電壓，會在PN結區域中形成一個正向電場，促使電子和空穴向中間匯集，從而推遲PN結區域的耗散時間，使整個器件保持導通狀態。反之，如果在門極上施加負向電壓或者斷開門極電源，PN結區域中的電子和空穴會快速復合和推移，從而截止整個器件的導通。
5SHY3545L0014 3BHB013085R0001 晶閘管(IGCT)模塊廣泛應用于各種設備或場所中，包括但不限于：
電力控制設備：如變頻器、調速器、電機控制器等，用于實現電力控制，如交流電的整流、逆變等。
工業電子設備：如PLC(可編程邏輯控制器)、DCS(分布式控制系統)、傳感器等，用于實現信號的采集、處理和輸出，以實現自動化控制和監測。
通信設備：5SHY3545L0014 3BHB013085R0001 如交換機、路由器、基站等，用于實現信號的調制、解調、放大等處理，以實現信號的傳輸和接收。
5SHY3545L0016 3BHB020720R0002 3BHE039203R0101 GVC736CE101 | Thyristor (IGCT) module
Model: 5SHY3545L0014 3BHB013085R0001
Category: Thyristor (IGCT) modules
Finish: New/not new
Delivery time: from stock
Warranty: One year
Express: SF Express/Debon
Payment: Wire transfer, Western Union
Thyristor (IGCT) module, also known as integrated gate commutated thyristor module, is a hybrid power semiconductor device which combines the stable switching ability of transistor with the advantage of low on-state loss of thyristor. The IGCT module integrates the GTO chip with the anti-parallel diode and gate driver circuit, and then connects the gate driver with low inductance at the periphery, which realizes the optimal scheme of high voltage and high power low frequency alternator. IGCT module has the characteristics of high current, high voltage, high switching frequency, high reliability, compact structure, low loss, low cost, high yield, and has a good application prospect.
Second, the working principle
5SHY3545L0014 3BHB013085R0001 IGCT module works by applying a forward voltage to the internal PN junction region, injecting holes and electrons in the PN junction region into the N-type induction layer and P-type induction layer to form an induction current. At the same time, a certain voltage signal is applied to the gated electrode of IGCT to control the on-off and cutoff of the whole device by controlling the recombination and displacement of holes and electrons in the PN junction region. Specifically, when the cathode of IGCT is grounded and the anode is connected with a positive voltage, the holes and electrons in the PN junction region are injected into the N-type induction layer and P-type induction layer to form an induction current. If a certain forward voltage is applied to the gate, a forward electric field will be formed in the PN junction region, prompting electrons and holes to converge to the middle, thus delaying the dissipation time of the PN junction region and keeping the whole device on. Conversely, if a negative voltage is applied to the gate or the gate power supply is disconnected, the electrons and holes in the PN junction region will rapidly recombine and shift, thus cutting off the conduction of the entire device.
5SHY3545L0014 3BHB013085R0001 Thyristor (IGCT) modules are used in a wide variety of devices or locations, including but not limited to:
Power control equipment: such as frequency converter, governor, motor controller, etc., used to achieve power control, such as AC rectification, inverter, etc.
Industrial electronic equipment: such as PLC (programmable logic controller), DCS (distributed control system), sensors, etc., used to achieve signal acquisition, processing and output to achieve automatic control and monitoring.
Communication equipment: 5SHY3545L0014 3BHB013085R0001 Such as switches, routers, base stations, etc., used to realize signal modulation, demodulation, amplification and other processing to achieve signal transmission and reception.
