EPRO PR6423/000 是一款高性能的非接觸式渦流傳感器，專為工業應用中的關鍵設備監測而設計。以下是該產品的概述：
產品概述
品牌與制造商：EPRO PR6423/000 由 EPRO 公司制造，屬于艾默生（Emerson）旗下品牌。
產品類型：非接觸式渦流傳感器。
核心功能：用于測量靜態和動態位移量，包括軸振動、軸位移、軸偏心、軸瓦磨損、油膜厚度等。
應用場景：廣泛應用于汽輪機、壓縮機、泵、風機等旋轉機械設備的監測保護系統，如 MMS 3000 和 MMS 6000。
特點
高精度測量：具備高線性度和高分辨率，能夠精確監測設備的振動和位移。
非接觸測量：采用渦流感應原理，避免與被測物體接觸，減少磨損，適用于高速旋轉設備。
防爆等級：可在防爆環境中使用，防爆等級達到 Eex ib IIC T6/T4。
溫度適應性：工作溫度范圍廣泛，從 -35℃ 到 +380℃。
多種配置：提供多種螺紋尺寸、電纜長度和連接方式，滿足不同工業場景的需求。
技術規格
測量范圍：0-20mm。
靈敏度：根據具體型號不同，PR6423 系列的靈敏度范圍為 1.33V/mm 到 16V/mm。
輸出信號：直流電壓上疊加與軸振動成正比的交流電壓信號。
精度：線性誤差低至 ±1.0%，溫漂和時漂控制在較低水平。
應用優勢
可靠性：符合 API 670、DIN 45670 和 ISO 10817-1 等國際標準，能夠在惡劣工業環境中穩定工作。
抗干擾能力：傳感器及電纜具有良好的屏蔽設計，可在復雜電磁環境中準確測量。
易于安裝與維護：出廠前完成線性校準，安裝時無需額外校準，只需調整傳感器與測量面之間的氣隙。
EPRO PR6423/000 以其高性能和可靠性，成為工業設備監測的理想選擇，尤其適用于需要高精度和高可靠性的場合。

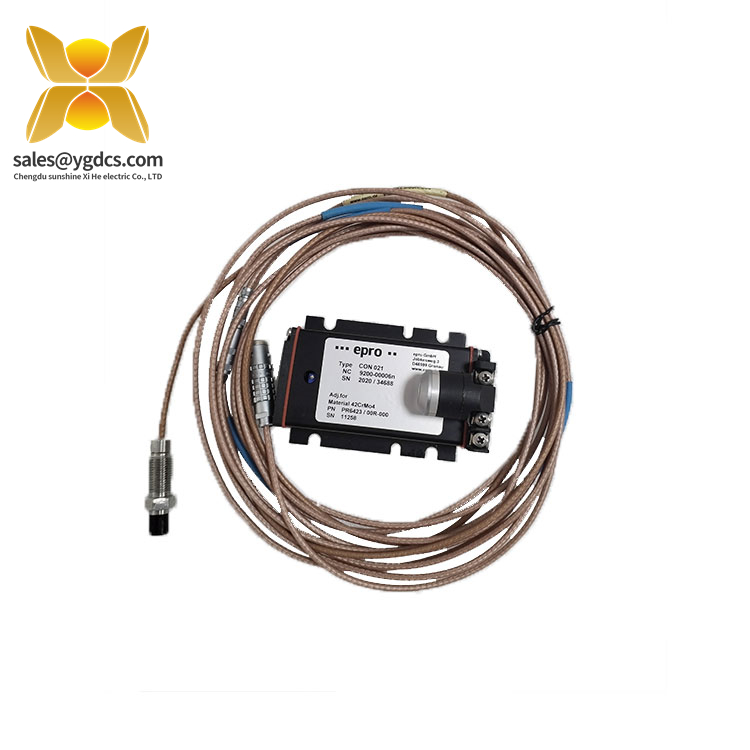

The EPRO PR6423/000 is a high performance non-contact eddy current sensor designed for critical equipment monitoring in industrial applications. Here is an overview of the product:
Product overview
Brand and manufacturer: The EPRO PR6423/000 is manufactured by EPRO Corporation and is a brand owned by Emerson.
Product type: non-contact eddy current sensor.
Core function: Used to measure static and dynamic displacement, including shaft vibration, shaft displacement, shaft eccentricity, bearing wear, oil film thickness, etc.
Application scenario: Widely used in turbine, compressor, pump, fan and other rotating machinery equipment monitoring and protection system, such as MMS 3000 and MMS 6000.
peculiarity
High precision measurement: With high linearity and high resolution, the vibration and displacement of the equipment can be accurately monitored.
Non-contact measurement: eddy current induction principle, avoid contact with the measured object, reduce wear, suitable for high-speed rotating equipment.
Explosion-proof rating: can be used in explosion-proof environment, explosion-proof rating up to Eex ib IIC T6/T4.
Temperature adaptability: The operating temperature range is wide, from -35℃ to +380℃.
Multiple configurations: Provides a variety of thread sizes, cable lengths and connection modes to meet the needs of different industrial scenarios.
Technical specification
Measuring range: 0-20mm.
Sensitivity: Depending on the model, the sensitivity range of the PR6423 series is 1.33V/mm to 16V/mm.
Output signal: The AC voltage signal superimposed on the DC voltage is proportional to the shaft vibration.
Accuracy: Linear error as low as ±1.0%, temperature drift and time drift control at a low level.
Application advantage
Reliability: Compliant with international standards such as API 670, DIN 45670 and ISO 10817-1, stable operation in harsh industrial environments.
Anti-interference ability: The sensor and cable have a good shield design, which can be accurately measured in complex electromagnetic environments.
Easy installation and maintenance: Linear calibration is completed before the factory, no additional calibration is required during installation, just adjust the air gap between the sensor and the measuring surface.
With its high performance and reliability, the EPRO PR6423/000 is the ideal choice for industrial equipment monitoring, especially where high precision and reliability are required.
