PCI-MXI-2 插入式電路板 可保存模型上電時加載的默認寄存器值

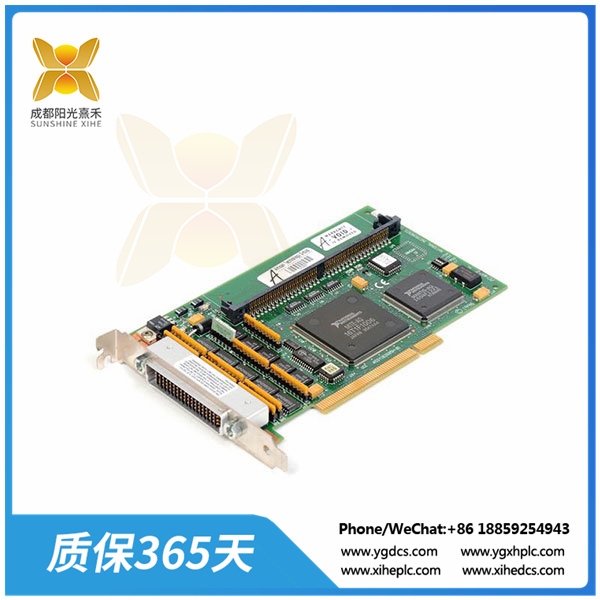

NI PCI-MXI-2(部件號：777185-01、182685K-01)是NIMXI-2系列的一部分。該電路板可以插入用戶基于 PCI 的計算機上的擴展插槽中。 PCI-MXI-2 將用戶的基于 PCI 的計算機直接連接到 MXIbus，反之亦然。由于 PCI-MXI-2 使用與其他基于 VXIbus 消息的儀器相同的通信寄存器集，因此其他 MXIbus 儀器將 PCI-MXI-2 視為 VXIbus 儀器。該插入式電路板支持 D64、塊和同步 MXI 周期，可實現高性能信息傳輸，支持 MXI 總線終端，并符合 PCI 規范 2.0 和 MXIbus 規范 2.0。該器件的可編程存儲器空間最小為 32 kb，數據路徑為 32 位。
NI PCI-MXI-2 插 插 式 電路 板 具有 板載 EEPROM， 可 保存 模型 上 電 時 加載 的 默認 寄存器 值。EEPROM有兩個部分：出廠配置部分和用戶配置部分。模型的出廠配置部分保存了默認用戶設置的備份，而用戶配置的部分可以更改。出廠配置是最低配置，即使修改了用戶配置，用戶仍可以啟動PCI-MXI-2。更改設置時，請勿修改 U3 開關 4 和 17 的設置。
PCI-MXI-2使用NI-VXI/NI-VISA軟件運行，并與LabVIEW、LabWindows/CVI和Measurement Studio等軟件包兼容。該設備可以使用Measurement & Automation Explorer (MAX)工具進行配置。
PCI-MXI-2是一款PCI-MXI模塊，可以采集模擬量輸入信號，通過PCI總線實時傳輸?shù)接?jì)算機中，用于數據采集、信號處理、測試控制等領域。
模擬量輸入信號是指連續的電壓、電流、壓力、溫度等可變物理量，通過模擬信號輸入模塊(如PCI-MXI-2模塊)轉換成計算機能夠識別的數字信號。
模擬信號轉化為數字信號需要經過三個步驟：
采樣：NI PCI-MXI-2(模擬信號被采樣成一系列的離散樣本，完成時間離散化，但在幅度上還是連續的。
量化：將采樣得到的模擬信號幅值轉換成數字量，也就是將連續的模擬信號離散化成一系列的數字值，這時信號不僅在時間上不再連續，在幅度上也不連續了。
編碼：NI PCI-MXI-2(將量化后的模擬信號數字化成二進制編碼，雖然在量化之后信號已經變成了數字信號，但二進制字的表示方法有很多，還要根據精度、動態范圍及實現成本等多個角度選擇所需的二進制編碼方式。
The NI PCI-MXI-2 (part number: 777185-01, 182685K-01) is part of the NIMXI-2 series. The board can be plugged into an expansion slot on the user's PCI-based computer. PCI-MXI-2 connects the user's PCI-based computer directly to MXIbus and vice versa. Because PCI-MXI-2 uses the same communication register set as other VXIbus message-based instruments, other MXIbus instruments treat PCI-MXI-2 as a VXIbus instrument. The plug-in board supports D64, block, and synchronous MXI cycles for high-performance information transfer, supports MXIbus terminals, and complies with PCI specification 2.0 and MXIbus specification 2.0. The device has a minimum of 32 kb of programmable memory space and a 32-bit data path.
The NI PCI-MXI-2 plug-in circuit board has an onboard EEPROM that saves the default register values loaded when the model is powered on. The EEPROM has two parts: the factory configuration part and the user configuration part. The factory configuration part of the model keeps a backup of the default user Settings, while the user configuration part can be changed. The factory configuration is the minimum configuration, and the user can start PCI-MXI-2 even if the user configuration is modified. When changing the Settings, do not modify the Settings of U3 switches 4 and 17.
PCI-MXI-2 runs with NI-VXI/NI-VISA software and is compatible with packages such as LabVIEW, LabWindows/CVI, and Measurement Studio. The device can be configured using the Measurement & Automation Explorer (MAX) tool.
Pci-mxi-2 is a PCI-MXI module, which can collect analog input signals and transmit them to the computer in real time through PCI bus for data acquisition, signal processing, test control and other fields.
Analog input signal refers to the continuous voltage, current, pressure, temperature and other variable physical quantities, through the analog signal input module (such as PCI-MXI-2 module) converted into a digital signal that can be recognized by the computer.
Converting an analog signal to a digital signal requires three steps:
Sampling: NI PCI-MXI-2 (Analog signal is sampled into a series of discrete samples, complete time discretization, but still continuous in amplitude.
Quantization: The analog signal amplitude obtained by sampling is converted into a digital quantity, that is, the continuous analog signal is discretized into a series of digital values, then the signal is not only no longer continuous in time, but also discontinuous in amplitude.
Coding: NI PCI-MXI-2 (the analog signal after quantization is digitized into binary coding, although the signal has become a digital signal after quantization, but there are many ways to represent binary words, but also according to the accuracy, dynamic range and implementation cost and other angles to choose the required binary coding method.
