SCXI-1100 | SCXI電壓輸入模塊 | ，能夠?qū)崟r監測電壓信號的變化
型號：SCXI-1100
類別：SCXI電壓輸入模塊
32通道，±10 V，4 Hz 濾波器，用于SCXI的電壓輸入模塊—SCXI-1100專為毫伏、伏特和電流信號的信號調理而設計。 所有通道通過跳線選擇的4 Hz低通濾波器進行多路復用，提供了多個增益范圍選項。 這些通道可多路復用控制DAQ設備的單個通道中，從而增加了DAQ系統的通道數。
SCXI-1100 電壓輸入模塊是用于接收和處理電壓信號的電子組件，其設計和功能因不同的應用場景和需求而有所差異。以下是關于電壓輸入模塊的一些主要特點和功能，參考了給出的文章信息：
通道數：SCXI-1100 電壓輸入模塊可以具有多個模擬輸入通道，例如1756-IF16A模塊具有16個模擬輸入通道，能夠同時監測和處理多個電壓信號。
電壓輸入范圍：電壓輸入模塊通常支持多種電壓輸入范圍，以適應不同的應用需求。這些范圍可以包括±10V、±5V、0-10V等。
分辨率：模塊通常具有高分辨率，能夠精確地測量電壓信號，并將其轉換為數字值，以便后續處理和分析。
采樣率：SCXI-1100 電壓輸入模塊通常具有較高的采樣率，能夠?qū)崟r監測電壓信號的變化，確保數據的準確性和實時性。
其他功能：
冷端補償：一些模塊支持冷端補償功能，以校正溫度變化對測量的影響。
診斷功能：模塊通常具有內置的診斷功能，用于監測模塊狀態和性能，以及檢測線路故障或異常。
模擬輸出：部分模塊具有模擬輸出功能，可將數字控制信號轉換為模擬電壓輸出。

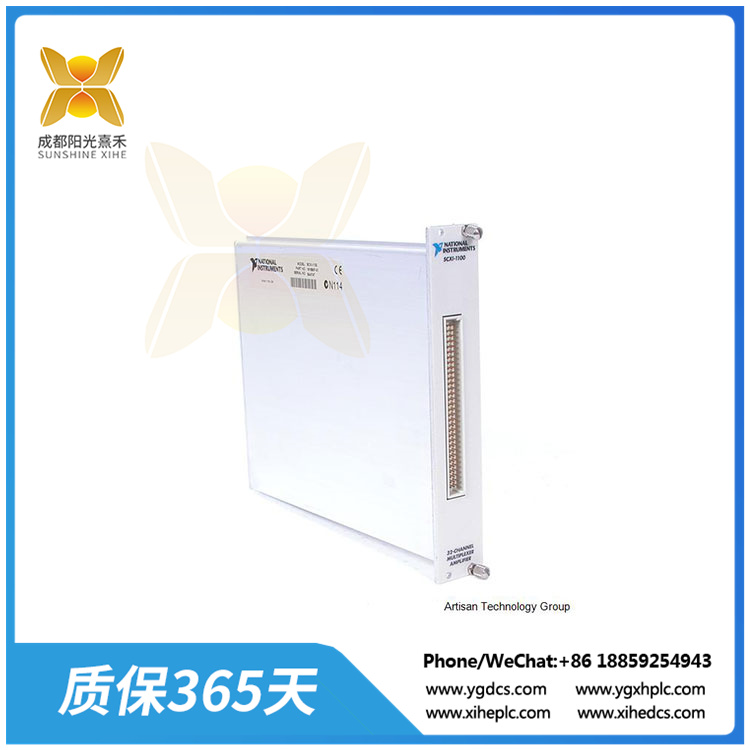

Model: SCXI-1100
Brand: SCXI Voltage input module
32 channel, ±10 V, 4 Hz filter, voltage input module for SCXI- The SCXI-1100 is designed for signal conditioning of millivolt, volt, and current signals. All channels are multiplexed via a 4 Hz low-pass filter with jumper selection, providing multiple gain range options. These channels can be multiplexed to control a single channel of a DAQ device, thereby increasing the number of channels in the DAQ system.
The SCXI-1100 voltage input module is an electronic component used to receive and process voltage signals, and its design and function vary according to different application scenarios and requirements. The following are some of the main features and functions of the voltage input module, with reference to the given article information:
Number of channels: The SCXI-1100 voltage input module can have multiple analog input channels, such as the 1756-IF16A module with 16 analog input channels, capable of simultaneously monitoring and processing multiple voltage signals.
Voltage input range: Voltage input modules usually support a variety of voltage input ranges to suit different application requirements. These ranges can include ±10V, ±5V, 0-10V, etc.
Resolution: Modules typically have high resolution and are able to accurately measure voltage signals and convert them into digital values for subsequent processing and analysis.
Sampling rate: The SCXI-1100 voltage input module usually has a high sampling rate, which can monitor the change of voltage signal in real time to ensure the accuracy and real-time data.
Other features:
Cold end compensation: Some modules support cold end compensation to correct for the effect of temperature changes on the measurement.
Diagnostic functions: Modules often have built-in diagnostic functions for monitoring module status and performance, as well as detecting line faults or anomalies.
Analog output: Some modules have analog output function, which can convert the digital control signal to analog voltage output.
