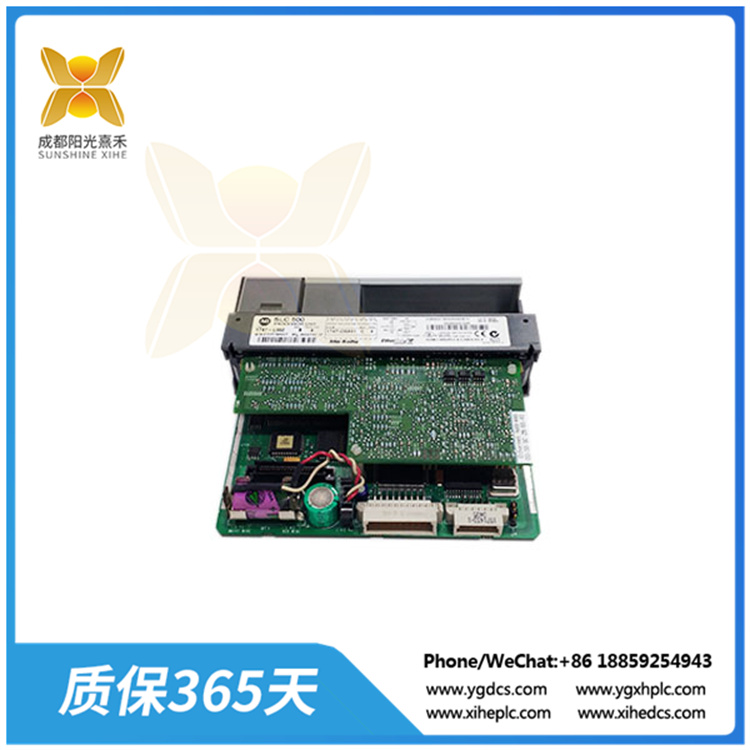

>>>型號:1747-L532 處理器 用于工業自動化和控制系統 高級指令集
【功能描述】
1747-L532是一款小型、簡單、袖珍型的處理器，它在工業自動化領域具有廣泛的應用，例如小型過程控制、材料處理和HVAC控制等。
1747-L532款處理器具有基于PLC-5處理器的高級指令集，可以獨立工作，也可以分布在SCADA應用程序的整個系統中。
1747-L532處理器的總用戶存儲器為16K字，其中12K字用于數據/程序，而4K字僅用于數據。它支持多達4096個輸入、4096個輸出和480個本地模擬I/O，這意味著它能夠處理大量的輸入和輸出數據，滿足復雜控
制系統的需求。每個關鍵字的程序掃描時間為1毫秒，保證了處理器的高速運行。
在電氣特性方面，1747-L532的背板電流在5伏直流電壓下為500mA，在24伏直流電壓下為175mA。此外，它最多可以支持2個本地I/O機箱，每個機箱中最多可以安裝30個模塊I/O插槽，提供了豐富的擴展能力。
在通信方面，1747-L532使用DH-485和RS-232端口，這些端口可以配置為連接到1761-NET-AIC轉換器，從而與其他設備或系統進行通信。這種通信能力使得處理器能夠輕松地集成到各種工業自動化系統中，
實現數據的傳輸和共享。
>>>>型號:1747-L532 處理器 用于工業自動化和控制系統 高級指令集
【英文介紹】
The 1747-L532 is a small, simple, pocket-sized processor with a wide range of applications in industrial automation, such as small process control, material handling, and HVAC control.
The 1747-L532 processor features an advanced instruction set based on the PLC-5 processor that can work independently or be distributed throughout the system for SCADA applications.
The 1747-L532 processor has a total user memory of 16K words, with 12K words for data/programs and 4K words for data only. It supports up to 4,096 inputs, 4,096 outputs, and 480 local analog I/ OS,
which means it can handle large amounts of input and output data to meet the needs of complex control systems. The program scanning time for each keyword is 1 millisecond, which ensures the high-speed o
peration of the processor.
In terms of electrical characteristics, the backplane current of the 1747-L532 is 500mA at 5 volts DC and 175mA at 24 volts DC. In addition, it can support up to 2 local I/O chassis, each chassis can be installed
with up to 30 module I/O slots, providing rich expansion capabilities.
In terms of communication, the 1747-L532 uses DH-485 and RS-232 ports, which can be configured to connect to the 1761-NET-AIC converter to communicate with other devices or systems. This communication
capability enables the processor to be easily integrated into various industrial automation systems, enabling the transmission and sharing of data.
