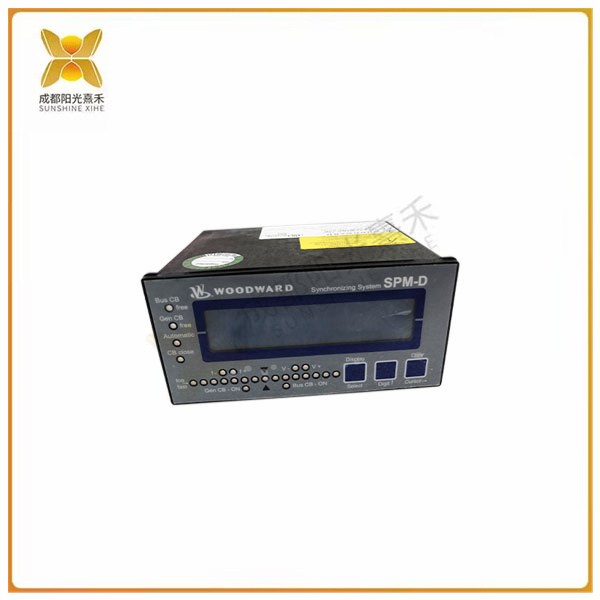

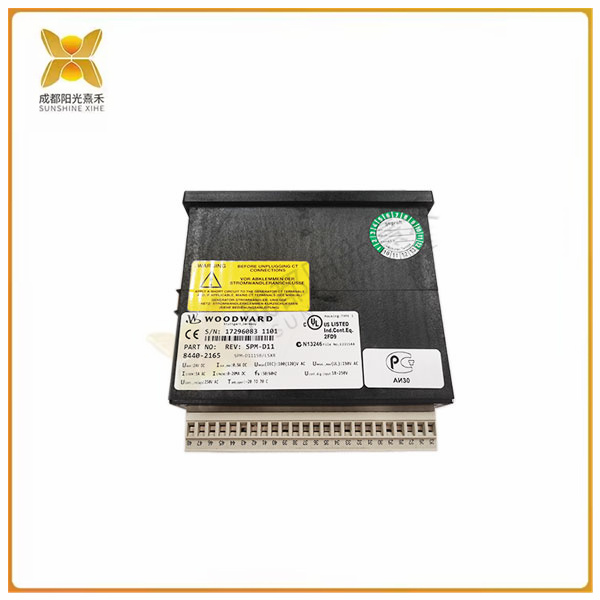

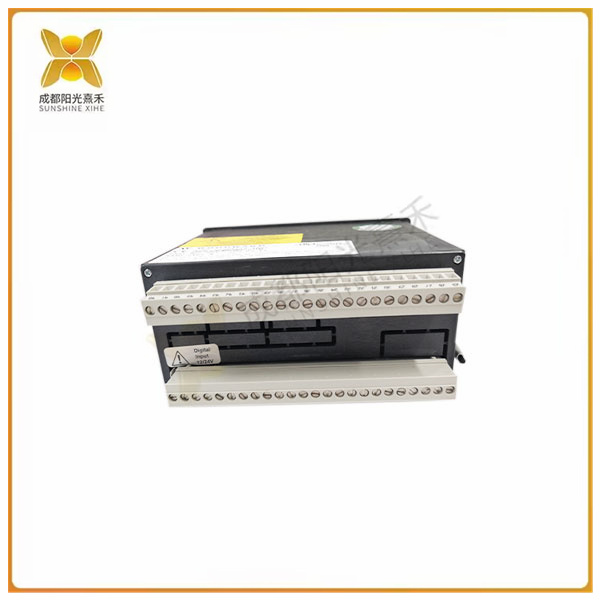

>>>>>型號:8440-2165 基于微處理器的同步器 速度控制器

【功能描述】

SPM-D11/LSXR 系列是基于微處理器的同步器，設計用于配備伍德沃德或其他兼容速度控制器和自動電壓調節器的單相或三相交流發電機。SPM-D11 系列同步器提供 1 相/2 線電壓測量，包括模擬或離散偏置信號、模擬有功和無功負載分擔線以及發電機保護。它結合了單個斷路器的同步、負載和功率因數控制或同步負載分配和發電機保護。特性和功能

SPM-D2-11 是一款基于微處理器的同步器，設計用于配備伍德沃德或其他兼容速度控制器和自動電壓調節器的單相或三相交流發電機。SPM-D2-11 同步器使用模擬或離散輸出偏置信號提供自動頻率、相位和電壓匹配。它結合了單個斷路器的同步、負載和功率因數控制或同步負載分配和發電機保護。該同步器適用于各種原動機和發電機，因?yàn)樗目刂菩盘?hào)可以設置為適合多種類型的發電機組 - 從快速反應的柴油發動機到軟反應的燃?xì)廨啓C(jī)。

所有 SPM-D2 同步器都受密碼保護，可通過 HMI（與 SPM-D 單元一樣）或通過帶有 USB 連接的 ToolKit 配置工具進行配置。

優勢包括：

與各種調速器、自動穩壓器和斷路器兼容

真有效值電壓檢測，可降低諧波敏感性

前置同步器，便于調試

HMI 編程和與伍德沃德 ToolKit 服務工具的 USB 連接

可直接替代現有的 SPM-D11 同步器

功能包括：

一個斷路器的同步

相位匹配或跳差頻率同步與電壓匹配

速度和電壓偏置信號輸出

有功功率和功率因數控制

兩條模擬負載分配線，用于有功和無功功率負載分配

模擬輸入，用于從外部控制有功功率設定點

包括發電機保護

用于操作模式選擇的離散輸入

兩行液晶文字顯示，用于操作、報警指示和測量值的可視化

LED同步器

PC 和前面板可配置

 >>>>>型號:8440-2165 基于微處理器的同步器 速度控制器

【英文介紹】

The SPM-D11/LSXR series are microprocessor-based synchronizers designed for single - or three-phase alternators equipped with Woodward or other compatible speed controllers and automatic voltage regulators. The SPM-D11 series synchronizers provide 1 phase /2 line voltage measurement, including analog or discrete bias signals, analog active and reactive load sharing lines, and generator protection. It combines single circuit breaker synchronization, load and power factor control or synchronous load distribution and generator protection. Features and functions

The SPM-D2-11 is a microprocessor-based synchronizer designed for single - or three-phase alternators equipped with Woodward or other compatible speed controllers and automatic voltage regulators. The SPM-D2-11 synchronizer provides automatic frequency, phase, and voltage matching using analog or discrete output bias signals. It combines single circuit breaker synchronization, load and power factor control or synchronous load distribution and generator protection. The synchronizer is suitable for a variety of prime movers and generators because its control signals can be set to suit many types of generator sets - from fast-reacting diesel engines to soft-reacting gas turbines.

All SPM-D2 synchronizers are password protected and can be configured via an HMI (as with the SPM-D unit) or via the ToolKit configuration tool with USB connection.

Advantages include:

Compatible with all kinds of governors, automatic regulators and circuit breakers

True RMS voltage detection reduces harmonic sensitivity

Front synchronizer for easy debugging

HMI programming and USB connection to Woodward ToolKit service tools

It can directly replace the existing SPM-D11 synchronizer

Features include:

Synchronization of a circuit breaker

Phase matching or jump frequency synchronization and voltage matching

Speed and voltage bias signal output

Active power and power factor control

Two analog load distribution lines for active and reactive power load distribution

Analog input for externally controlling the active power set point

Generator protection included

Discrete input for mode of operation selection

Two-line LCD text display for operation, alarm instructions and visualization of measured values

LED synchronizer

The PC and front panel are configurable
