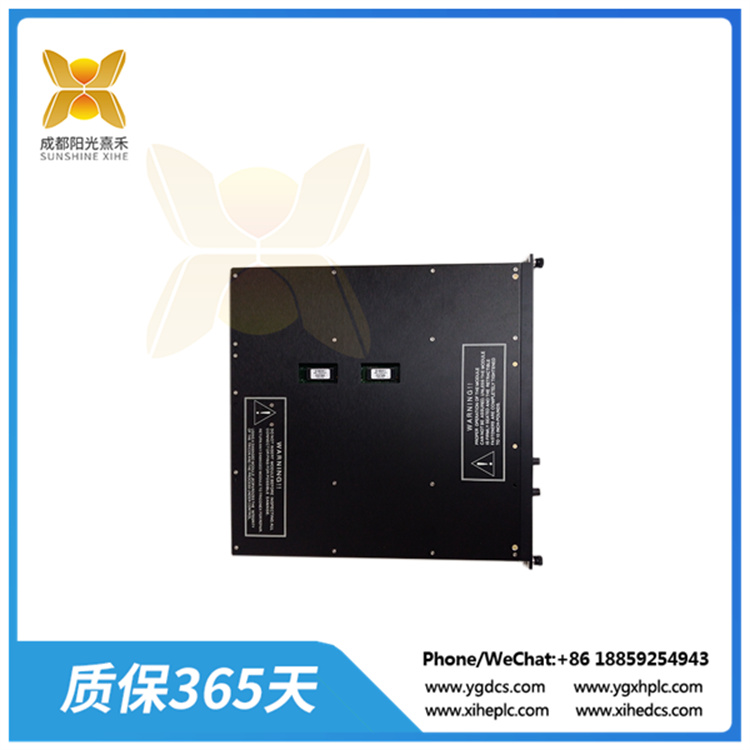

>>>型號:TRICONEX 4210 遠程擴展模塊 具備電接口4000V的防雷 用于工業自動化和控制系統
【功能描述】
TRICONEX 4210遠程擴展模塊是一款專為工業自動化設計的模塊，具備多種出色的功能和特點。
TRICONEX 4210遠程擴展模塊支持標準規范中的預定通信速率，并且可以通過撥碼開關手動設置其全部標準速率或者實現速率自適應，確保電接口速率一致。這一特點使得該模塊在各種工業自動化應用中都能實現高效、穩定的通信。
該模塊具有6個雙色LED狀態指示燈，可以清晰地顯示模塊的工作狀態。同時，它還具有電源故障繼電器輸出告警功能，一旦出現故障，能夠及時發出告警信號，方便用戶進行故障排查和處理。
TRICONEX 4210遠程擴展模塊還具備電接口4000V的防雷、1.5A過流、600W浪涌保護功能，以及工業級設計，經過EMC測試認證，確保其能夠在惡劣的工業環境下穩定運行。
在電源方面，該模塊采用DC9-36V寬冗余雙電源設計，具有DC1500V電源隔離和反接保護功能，提高了電源的可靠性和穩定性。
TRICONEX 4210遠程擴展模塊的防護等級為IP30，采用波浪紋鋁制加強機殼，標準工業35mm導軌安裝方式，使得安裝和維護變得更加方便。
TRICONEX 4210遠程擴展模塊的數據電接口采用9針的Sub_D插孔連接器，其管腳定義符合Profibus DP的協議規范，并支持Profibus DP總線標準，這使得該模塊能夠與其他遵循相同標準的設備進行無縫連接和通信。
在輸入和輸出方面，該模塊的輸入電壓范圍為12-48VDC，輸出電壓為5VDC，并且其CPU為32位RISC處理器，運行溫度范圍為-20°C至+50°C。此外，其輸出電流最大可達10A，效率大于90%，顯示出其強大的性能。
總的來說，TRICONEX 4210遠程擴展模塊以其出色的通信性能、穩定性、防護能力以及高效的電源設計，為工業自動化系統提供了可靠的支持。
>>>>型號:TRICONEX 4210 遠程擴展模塊 具備電接口4000V的防雷 用于工業自動化和控制系統
【英文介紹】
The TRICONEX 4210 Remote Expansion module is a module designed specifically for industrial automation with a variety of outstanding functions and features.
The TRICONEX 4210 Remote expansion module supports predetermined communication rates in the standard specification and can be manually set to all standard rates via a dip switch or rate adaptive to
ensure consistent electrical interface rates. This feature enables the module to achieve efficient and stable communication in various industrial automation applications.
The module has 6 two-color LED status indicators, which can clearly show the working status of the module. At the same time, it also has the power supply fault relay output alarm function, once the fault
occurs, can send alarm signal in time, convenient for users to troubleshoot and deal with the fault.
The TRICONEX 4210 Remote expansion module also features a 4000V electrical interface for lightning protection, 1.5A overcurrent, 600W surge protection, and an industrial-grade design with EMC test
certification to ensure stable operation in harsh industrial environments.
In terms of power supply, the module adopts DC9-36V wide redundant dual power supply design, with DC1500V power isolation and reverse protection functions, which improves the reliability and stability
of the power supply.
The TRICONEX 4210 Remote Expansion module is IP30 rated, with a corrugated aluminum reinforced housing and standard industrial 35mm rail mounting for easy installation and maintenance.
The TRICONEX 4210 remote expansion module's data electrical interface uses a 9-pin Sub_D jack connector, whose pin definition conforms to the Profibus DP protocol specification and supports the Profibus
DP bus standard, which enables the module to seamlessly connect and communicate with other devices that follow the same standard.
In terms of input and output, the module has an input voltage range of 12-48VDC and an output voltage of 5VDC, and its CPU is a 32-bit RISC processor with an operating temperature range of -20°C to +50°C.
In addition, its output current can reach a maximum of 10A, and the efficiency is greater than 90%, showing its powerful performance.
Overall, the TRICONEX 4210 Remote expansion module provides reliable support for industrial automation systems with excellent communication performance, stability, protection and efficient power supply design.
