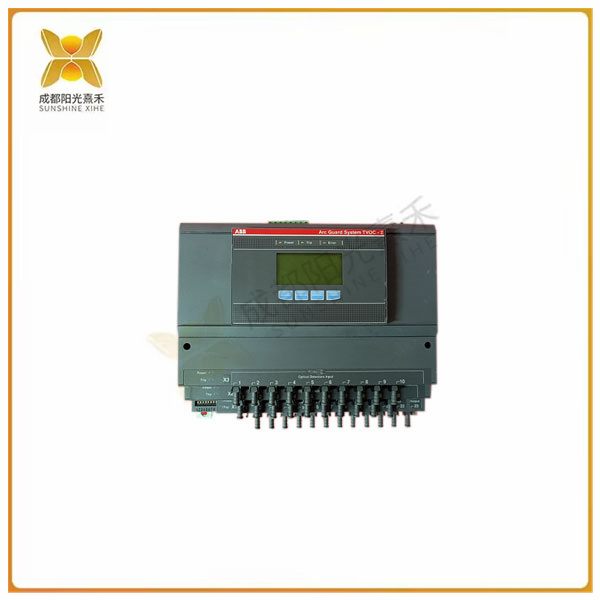

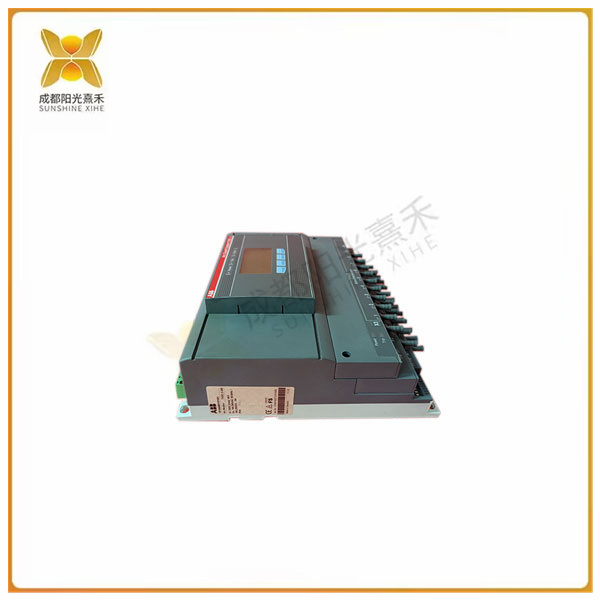

>>>>>型號:TVOC-2-240 弧光監測器 采用了模塊化的概念
【功能描述】
弧光監測器
弧光監測器的設計采用了模塊化的概念，適用于所有類
型的低壓和中壓開關柜，并獲得了功能安全性（SIL-2）
標準認證，且符合IEC61508和IEC62061標準。這些標準
確保了產品的可靠性。這種認證與EN ISO13849-1中的d
級性能要求一致。安全功能由專門的硬件處理。此外，
系統、脫扣日志和用戶友好界面的操作菜單則由微處理
器進行處理。
系統可以設置成根據是哪個光傳感器檢測到光，讓指定
的斷路器脫扣。通過撥碼開關設置此功能，并可設置自
動復位和電流感應單元。詳細信息請參見第14-15頁。
系統儲存的能量能夠在電源中斷后支持運行0.2秒，這
個時間足以保證脫扣電路動作，即使在發生短路故障、
電壓消失的情況下也不受影響。
注意：斷路器仍需要后備電源作為脫扣電路的工作電源。
連接

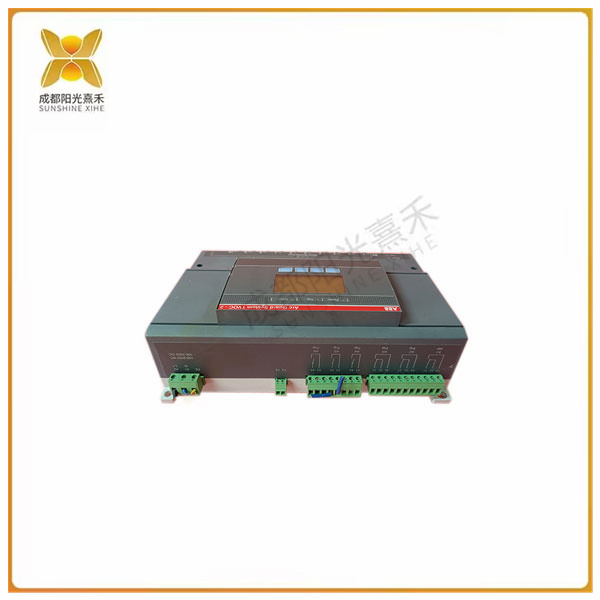

所有接線可以在弧光監測器的正面進行。插拔式接線端
子有助于在TVOC-2安裝到開關柜之前完成接線。固態
脫扣觸點是IGBT型，能確保脫扣快速可靠。
更多詳細信息，可參見第10頁的技術數據部分
弧光監測器的連接
3個IGBT高速固態脫扣觸點
2個轉換脫扣信號繼電器
1個轉換自監視報警繼電器(IRF)
2個電流感應單元輸入
1個電流感應單元輸出

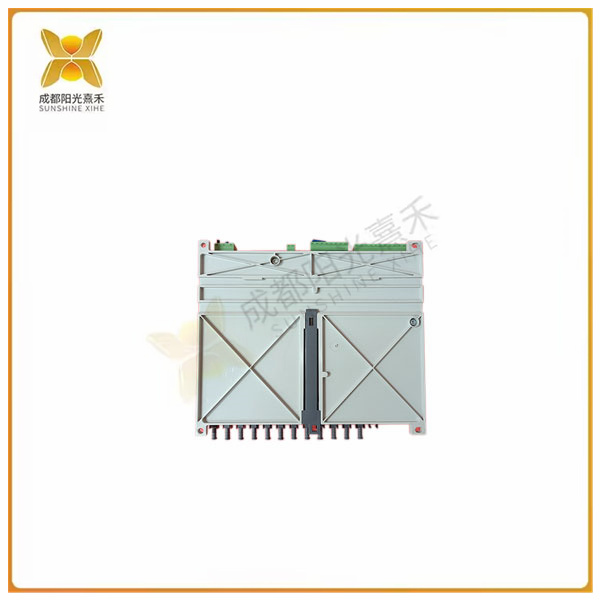

安裝方式
DIN導軌安裝
壁掛式安裝

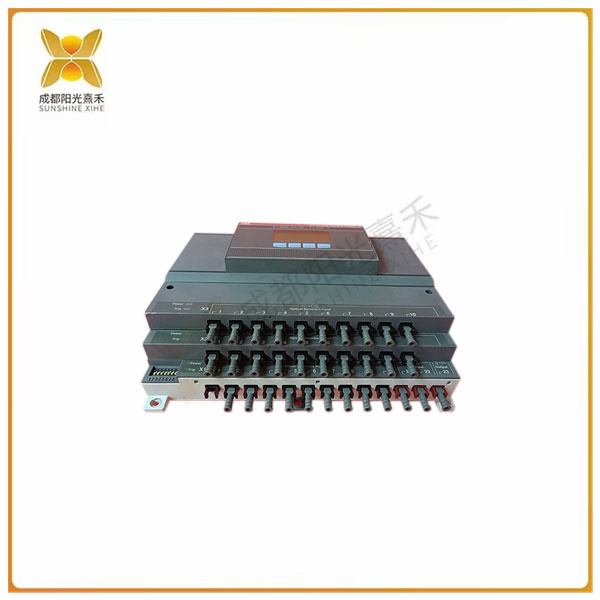

光傳感器輸入
1-10個主單元 X1
1-10個擴展單元模塊 X2
1-10個擴展單元模塊 X3
HMI（人機界面）
可安裝在柜門上
IP54
可增加HMI
界面友好的啟動菜單
可提供帶通訊模塊的產品
>>>>>型號:TVOC-2-240 弧光監測器 采用了模塊化的概念
【英文介紹】
Arc monitor
The design of the arc monitor adopts a modular concept and is suitable for all classes
Type low and medium voltage switchgear, and obtained functional safety (SIL-2)
Standard certification, and comply with IEC61508 and IEC62061 standards. These standards
Ensure the reliability of the product. This certification is consistent with d in EN ISO13849-1
Level performance requirements are consistent. Security functions are handled by specialized hardware. In addition,
The system, trip logs, and user-friendly operation menus are microhandled
The machine is processed.
The system can be set to be specified depending on which light sensor detects the light
The circuit breaker trips. This function is set using the DIP switch and can be set from
Dynamic reset and current sensing unit. For details, see pages 14-15.
The energy stored in the system can run for 0.2 seconds after a power outage, which
This time is sufficient to ensure that the trip circuit operates, even in the event of a short circuit fault,
It is not affected if the voltage is lost.
Note: The circuit breaker still requires a backup power supply as the working power supply for the trip circuit.
join
All wiring can be done on the front of the arc monitor. Plug and pull terminals
The sub helps complete the wiring before the TVOC-2 is installed into the switchgear. Solid state
The trip contact is IGBT type, which ensures quick and reliable trip.
For more details, see the Technical Data section on page 10
Connection of arc monitor
3 IGBT high-speed solid state trip contacts
2 conversion trip signal relays
1 conversion self-monitoring alarm relay (IRF)
2 current sensing unit inputs
1 current sensing unit output
Installation mode
DIN rail mounting
Wall-mounted
Optical sensor input
1-10 main units X1
1-10 expansion unit modules X2
1-10 expansion unit modules X3
HMI (Human Machine Interface)
It can be installed on the cabinet door
IP54
HMI can be added
User-friendly startup menu
Products with communication modules are available
