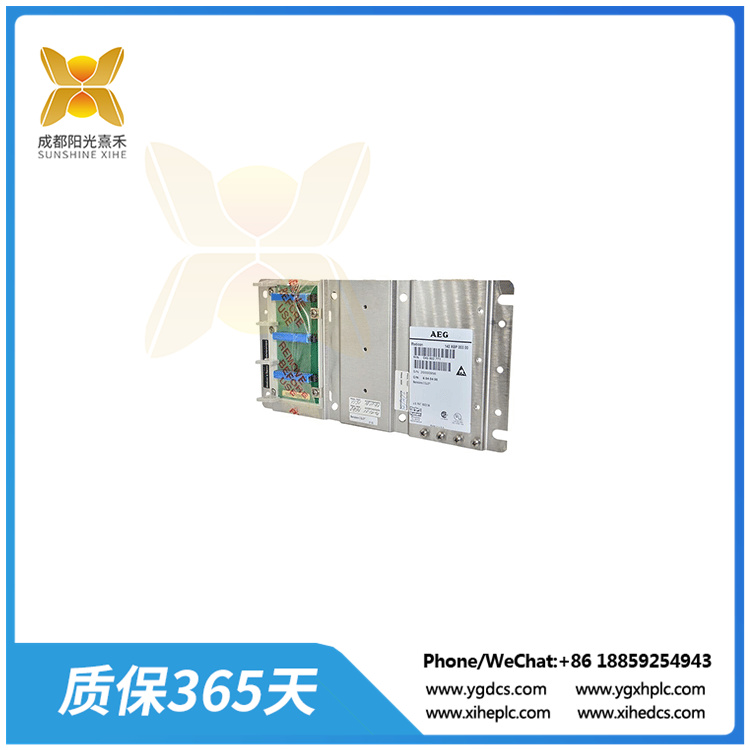

140XBP00300 | 機架背板 | 實現主控板與業務板間的高速數據互連
零件編號 編號：140XBP00300
安裝支持 架
產品或組件類型 ：機架背板
產品特定應用 ：對于本地 I/O 模塊
安裝支持 ：安裝板
定義：
140XBP00300 機架背板是支撐其他電路板、器件和器件之間相互連接的電路板或框架。
它不僅提供了所支撐器件的電源和數據信號，還是PCB制造業中具有專業化性質的產品。
特點：
背板較常規PCB板要厚和重，以適應大功耗應用卡的需求。
銅層厚度適中，以確保提供所需電流，保證卡能正常工作。
功能：
140XBP00300 實現主控板與業務板間的高速數據互連及系統各類管理及控制信號的交換。
支持單板的帶電插拔，自動識別各槽位和機架類型。
與電源模塊相連，實現系統分布式供電。
引入風扇框和電源的監控信號線。
通信鏈路：
140XBP00300 背板上的通信鏈路包括控制鏈路和數據鏈路，分別傳遞控制信息和數據信息。
在正常轉發時，要交換的數據不會在兩個主控板間傳遞，只會在主控板和業務板以及各業務板間交互。
種類：
除了在電子和通信領域使用的背板外，還有鋼制背板、木制背板等其他種類的背板。
鋼制背板主要用于機械設備和建筑工程中，提供結構強度和穩定性，并可以減輕機器的重量。
木制背板則用于家具制造和建筑材料生產中，具有美觀和裝飾作用。
Part Number: 140XBP00300
Mounting support bracket
Product or component type: Rack backplane
Product specific application: For local I/O modules
Installation support: Mounting board
Definition:
140XBP00300 A rack backplane is a circuit board or frame that supports the interconnections between other circuit boards, devices, and devices.
It not only provides the power and data signals of the supported devices, but also has a professional nature of the PCB manufacturing industry.
Features:
The backplane is thicker and heavier than the conventional PCB board to meet the needs of high-power application cards.
The thickness of the copper layer is moderate to ensure that the required current is provided to ensure the normal operation of the card.
Features:
140XBP00300 Realizes high-speed data interconnection between the main control board and the business board and the exchange of various management and control signals of the system.
Supports onboard insertion and removal of boards, and automatically identifies slots and rack types.
Connect to the power module to realize distributed power supply.
The monitoring signal cables for the fan frame and power supply are introduced.
Communication links:
140XBP00300 Communication links on the backplane include control links and data links, which transmit control information and data information respectively.
In normal forwarding, the data to be exchanged is not transmitted between the two MPUs, but only between the MPUS and the SPUs, and between the SPUs.
Type:
In addition to backplanes used in the field of electronics and communications, there are other types of backplanes such as steel backplanes and wooden backplanes.
The steel backplane is mainly used in mechanical equipment and construction projects to provide structural strength and stability, and can reduce the weight of the machine.
Wooden backboards are used in furniture manufacturing and building material production, with aesthetic and decorative effects.
