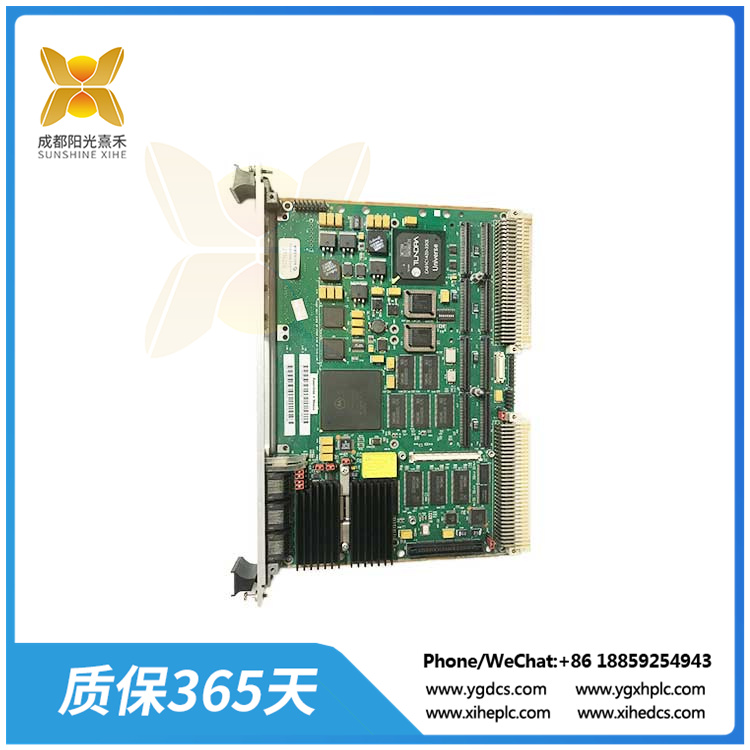

MVME5100 | 單板計算機 | 支持264MB/s的完整PC吞吐量
艾默生網絡能源MVME5100系列是艾默生PowerPlusIIVME架構產品線的旗艦產品，能夠在單個VME總線插槽中實現超級計算級別的性能。PowerPlusll基于Emerson設計的集成PC橋存儲控制器ASIC，將存儲性能提升到新水平，內存讀取帶寬為582 MB/S，突發(fā)寫入帶寬為640 MB/s
MVME5100系列采用PowerPlusI架構，支持264MB/s的完整PC吞吐量，而不會耗盡處理器的內存。MVME5100專為滿足國防和航空航天、工業(yè)自動化和醫(yī)療細分市場OEM的需求而設計。
該MVME5100合并了兩個軌道的最佳功能使OEM支持不同的L/0與相同的基礎平臺的要求，簡化零件號維護，技術專長的要求和備用。
P2 1/0模式
該MVME5100支持兩個，跳線可配置P2 1/0模式;PMC和IPMC。PMC模式與MVME2300/MVME2400向后兼容。在PMC模式下，PMC插槽1的64個引腳和PMC插槽2的46個引腳可用于PMC后部I/0的P2。
在IPMC模式下，MVME5100支持傳統(tǒng)的MVME761或MVME712M的I/O模塊(與limitecPMC的I/0)時，一個IPMC761或IPMC712PMC卡在PMC插槽1填充。在這種配置中，PMC插槽2包含一些為擴展SCSI保留的信號。
IPMC模塊
IPMC761和IPMC712是可選的附加組件PMC模塊，提供向后兼容與上一代艾默生產品(如MVME2600和MVME2700)使用MVME761或MVME712M過渡板。IPMC模塊提供后部以下的I/O支持:
一個單端超寬SCSI端口
一個并行端口
四個串行端口(2或3個異步和1或2個同步/異步)。取決于模塊)
通過這種PMC卡配置，內存夾層、一個PMC插槽和PMCspan仍然可用，為OEM產品定制提供支持
The Emerson Network Power MVME5100 series is the flagship product of Emerson's PowerPlusIIVME architecture line, enabling supercompute-level performance in a single VME bus slot. PowerPlusll's integrated PC Bridge storage controller ASIC, based on Emerson's design, takes storage performance to the next level with memory read bandwidth of 582 MB/S and burst write bandwidth of 640 MB/s
The MVME5100 series uses the PowerPlusI architecture to support a full PC throughput of 264MB/s without depleting the processor's memory. The MVME5100 is designed to meet the needs of Oems in the defense and aerospace, industrial automation, and medical segments.
The MVME5100 combines the best features of both tracks to enable Oems to support different L/ 0s with the same base platform requirements, simplifying part number maintenance, technical expertise requirements and stand-by.
P2 1/0 mode
The MVME5100 supports two jumpers, P2/0 mode can be configured. PMC and IPMC. The PMC mode is backward compatible with the MVME2300/MVME2400. In PMC mode, 64 pins of PMC slot 1 and 46 pins of PMC slot 2 are available for P2 of PMC rear I/0.
In IPMC mode, the MVME5100 supports the traditional MVME761 or MVME712M I/O module (with limitecPMC I/0) when an IPMC761 or IPMC712PMC card is filled in PMC slot 1. In this configuration, PMC slot 2 contains some signals reserved for extended SCSI.
IPMC module
The IPMC761 and IPMC712 are optional add-on PMC modules that provide backward compatibility with previous generation Emerson products such as the MVME2600 and MVME2700 using the MVME761 or MVME712M transition boards. The IPMC module provides the following rear I/O support:
A single-ended ultra-wide SCSI port
A parallel port
Four serial ports (2 or 3 asynchronous and 1 or 2 synchronous/asynchronous). Depends on module)
With this PMC card configuration, memory interlayers, a PMC slot, and PMCspan are still available to support OEM product customization
