>>>>>型號:IS200TREAH2AED 印刷電路板 渦輪機保護模塊
【功能描述】
IS200TREAH2AED是一個端子板，與Mark VI Speedtronic渦輪機控制系統中的渦輪機保護模塊（VPRO）相關聯。Mark VI可以設置為單工或三重模塊化冗余編隊，使其能夠控制、保護和監控各種尺寸的渦輪機系統。
該IS200TREAH2AED用于為每個渦輪機保護模塊提供獨立的速度拾取器。然后，該模塊會高速處理它們。IS200TREAH2AED板還將線路電壓和發電機電壓輸入扇出到每個渦輪機保護模塊以實現同步，并接受軸速信號以提供緊急超速保護。

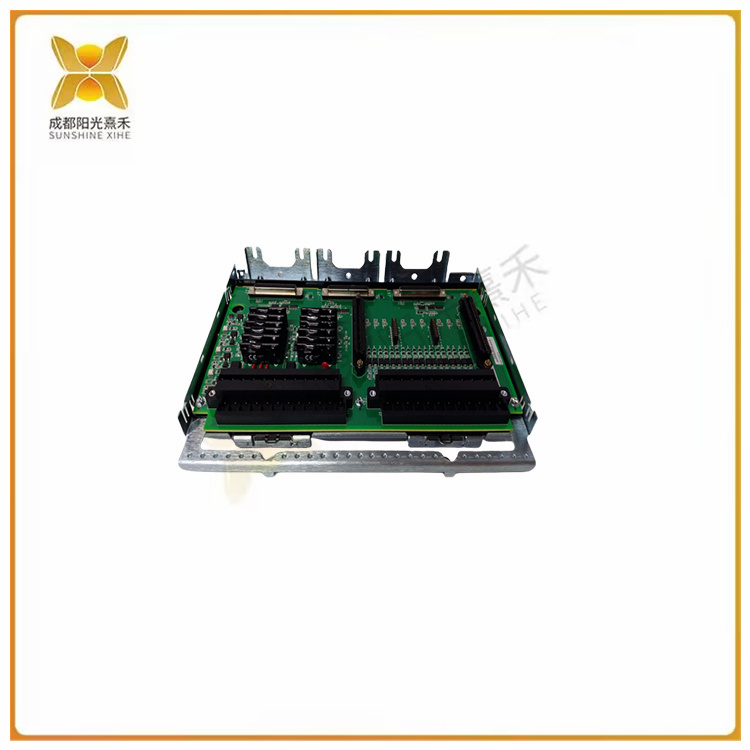

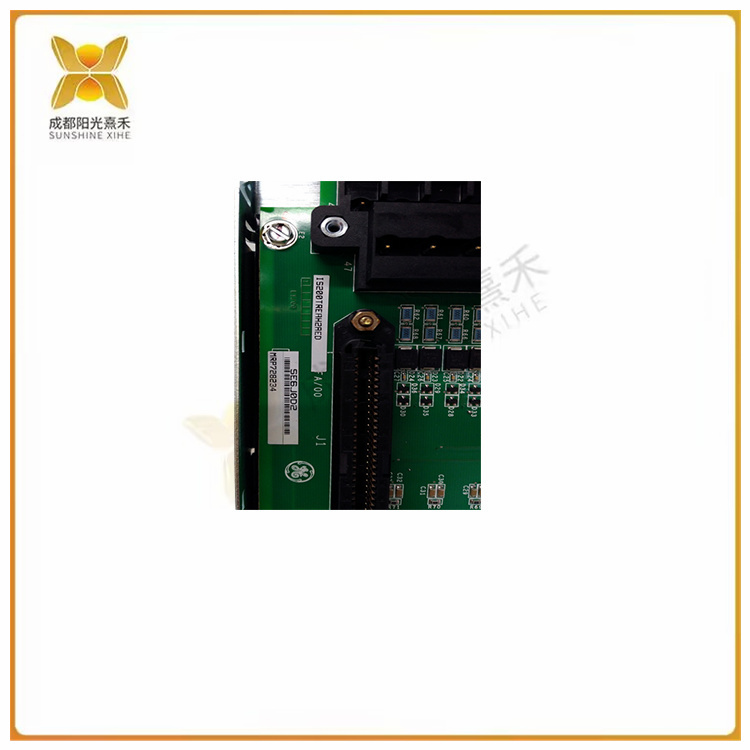

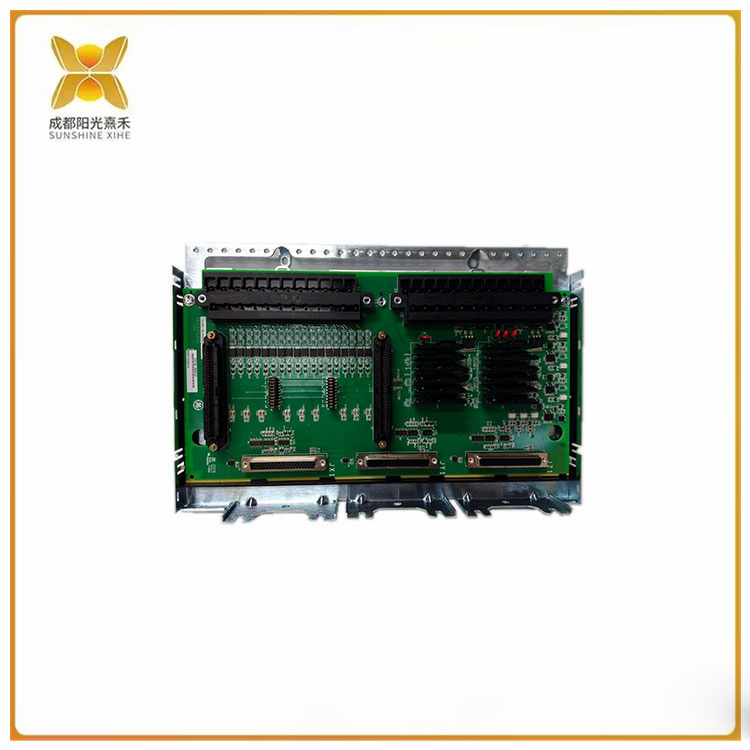

該IS200TREAH2AED由三個大型d-shell連接器和三個較小的d-shell連接器組成。在另一側，電路板有兩個端子排，每個端子帶有兩條螺釘連接線。在兩者之間，該板有兩個變壓器、兩個金屬氧化物壓敏電阻、跳線開關、集成電路、電阻器、電感器、電容器和二極管。該板沿邊緣和角落成型，并且在板體內也有幾個切口。它帶有多個代碼和標記以及條形碼。一些工廠制造的孔由感應材料環繞。
>>>>>型號:IS200TREAH2AED 印刷電路板 渦輪機保護模塊
【英文介紹】
The IS200TDBTH6ACDCD is a device called a discrete simplex board. This is a form of printed circuit board or PCB manufactured by General Electric or GE. The IS200TDBTH6ACDCD is a component of GE's Mark VI series for steam and gas turbine control. The series is one of several that make up the Mark series. These systems are used to control turbine systems in a wide range of industries worldwide.
The IS200TDBTH6ACDCD prominently features a collection of 12 large black potentiometers, which are also known as variable resistors. The potentiometers are arranged in three (3) horizontal rows of four components each. A rectangular gray element is placed on either side of the potentiometer. The lower half of the IS200TDBTH6ACDCD is occupied by several rows of very small components. Two (2) rows of long round red elements, called MOV or metal oxide varistors, are arranged on the left side of the IS200TDBTH6ACDCD. At the very bottom of the IS200TDBTH6ACDCD near the center is a small white connector with three (3) ports. This connection can be used to connect other devices to the IS200TDBTH6ACDCD. Several small integrated circuits can be placed in the top half of the IS200TDBTH6ACDCD. Some of them are aligned horizontally in the center and others are aligned vertically in the upper right corner. There is one (1) small yellow capacitor in the center of the IS200TDBTH6ACDCD of the integrated circuit. Two (2) small yellow resistors are located at the bottom of the IS200TDBTH6ACDCD with one (1) black stripe in the middle.
