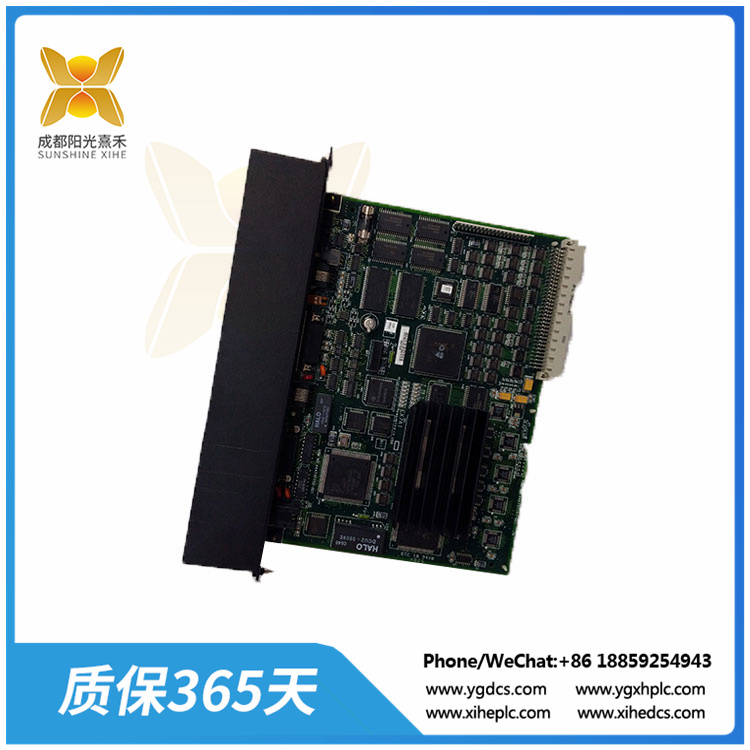

IC697CPM790 | 單插槽寬模塊 | 可編程邏輯控制器 (PLC) CPU
IC697CPM790是 90-70 系列可編程邏輯控制器 (PLC) CPU。該 CPU 是一個單插槽寬模塊，專門用于關鍵應用，例如緊急關機系統、消防、燃?xì)夂推渌麘?yīng)用。該 CPU 通過合并獨立 C 程序來支持三重介質冗余 (TMR)，以啟用自動測試?yán)獭?/p>
該IC697CPM790具有 1 MB 的電池備份內存，最多 512KB 可供使用梯形圖編程語言配置的用戶程序使用。當配置為單工模式時，該 CPU 支持多達 12K 的離散輸入和輸出點，可任意組合;2048 票投票支持離散輸入，2048 票投票支持離散輸出。同樣，該IC697CPM790能夠處理高達 8K 的模擬輸入和輸出，在單工模式下運行時可任意組合，以及 1024 個投票模擬輸入。它配備了 80486DX2 微處理器，時鐘速度為 64 MHz。該 CPU 具有相對較快的掃描速率，每個布爾函數為 0.4 微秒，適用于關鍵應用。
規格:
處理器性能:該P(yáng)LC內置高性能處理器，可快速處理和執行控制邏輯。
存儲容量:IC697CPM790-GD提供足夠的內存來存儲程序、數據和配置，以滿足復雜的應用需求,
通信接口:具有多種通信接口，如以太網、串口等，方便與其他設備和系統進行通信。
I/0點數:具有一定數量的輸入/輸出(I/0)點數，用于連接各種傳感器和執行器。
電源要求:需要穩定的電源供應，以確保設備的正常運行。
應用領域:
制造業:在制造業中，GEIC697CPM790-GD可用于自動化生產線、包裝機械、裝配線等設備的控制和監控。
能源與公用事業:在能源和公用事業領域，該P(yáng)LC可用于電力、水務、燃?xì)獾认到y(tǒng)的監控和控制。
交通運輸:在交通運輸領域，IC697CPM790-GD可用于鐵路、地鐵、公路等交通設施的信號控制和監控系統
建筑與基礎設施:在建筑和基礎設施領域，該P(yáng)LC可用于樓宇自動化、智能照明、安全監控等系統。
The IC697CPM790 is a 90-70 series Programmable Logic controller (PLC) CPU. The CPU is a single slot wide module designed for critical applications such as emergency shutdown systems, fire fighting, gas and other applications. The CPU supports triple media redundancy (TMR) by incorporating independent C programs to enable automated test routines.
The IC697CPM790 has 1 MB of battery backup memory and up to 512KB is available for user programs configured using the ladder diagram programming language. When configured in simplex mode, the CPU supports up to 12K discrete input and output points in any combination; 2048 votes for discrete input, 2048 votes for discrete output. Similarly, the IC697CPM790 is capable of handling up to 8K analog inputs and outputs, any combination when running in simplex mode, and 1024 voting analog inputs. It is equipped with an 80486DX2 microprocessor with a clock speed of 64 MHz. The CPU has a relatively fast scan rate of 0.4 microseconds per Boolean function, making it suitable for critical applications.
Specifications:
Processor performance: The PLC has a built-in high-performance processor for fast processing and execution of control logic.
Storage capacity :IC697CPM790-GD provides enough memory to store programs, data, and configurations to meet the needs of complex applications.
Communication interface: With a variety of communication interfaces, such as Ethernet, serial port, etc., to facilitate communication with other devices and systems.
I/0 points: Has a certain number of input/output (I/0) points for connecting various sensors and actuators.
Power requirements: A stable power supply is required to ensure the normal operation of the device.
Application field:
Manufacturing: In the manufacturing industry, the GEIC697CPM790-GD can be used for the control and monitoring of automated production lines, packaging machinery, assembly lines and other equipment.
Energy and Utilities: In the energy and utilities sector, the PLC can be used for monitoring and control of electricity, water, gas and other systems.
Transportation: In the field of transportation, IC697CPM790-GD can be used for signal control and monitoring systems of railway, subway, highway and other traffic facilities
Building and Infrastructure: In the field of building and infrastructure, the PLC can be used in building automation, intelligent lighting, security monitoring and other systems.
