>>>>>型號:DS200DCFBG1BLC 電源板 提供系統控制級電源

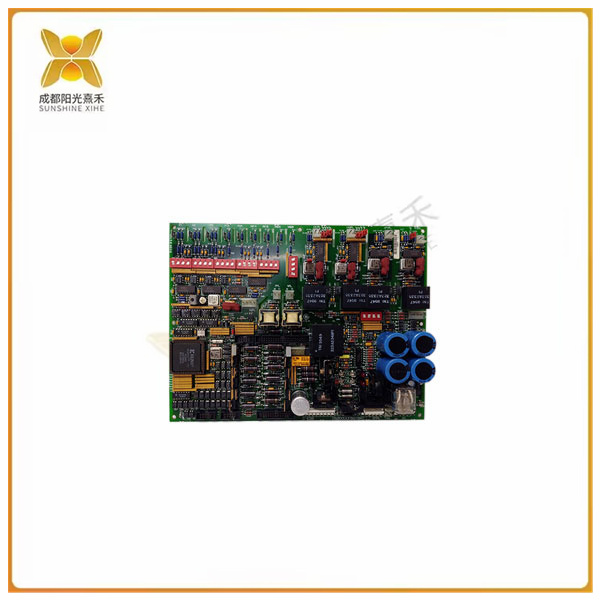

【功能描述】
DS200DCFBG1BLC是通用電氣為Mark V系列選裝板和替換板設計的電源板。該系列的成員與許多GE品牌的勵磁器和驅動器交叉兼容。DC2000、AC2000、CB2000、ME2000 和 FC2000 的驅動器都可以接受此電源板。該卡為其安裝的驅動器提供系統控制級電源，并為機柜風扇提供電源。該板的源交流輸入的額定電壓為 38 至 115 VAC。該 VAC 隨附的頻率范圍為 0 至 500 kHz，具體取決于輸入電壓的強度。
DS200DCFBG1BLC包含許多復雜的電路系統，旨在為大部分驅動器供電。該卡包括交流和直流監控電路、控制級電源電路、電機現場電源電路和驅動器電路。用戶可以在卡上配置 12 個跳線和 7 個 DIP 開關，以滿足任何外部要求。電路板狀態通過板載指示器傳達給用戶?？▋?nèi)置兩個 LED 和一個霓虹燈指示燈，為用戶提供重要的診斷和狀態信息。 電路板的三個保險絲受到保護，確保中斷或浪涌不會中斷電流。請務必使用集成在電路板中的五個測試點定期監控電壓電平。
必須遵循DS200DCFBG1BLC和驅動器提供的安裝參數。這些指南將確保電路板及其安裝的系統按預期運行。 有關接線和安裝指南，請參閱系列手冊以及設備數據表。 Mark V 系列中所有主板的技術支持最初由制造商通用電氣提供。
>>>>>型號:DS200DCFBG1BLC 電源板 提供系統控制級電源
【英文介紹】
The DS200DCFBG1BLC is a power board designed by General Electric for the Mark V Series optional and replacement boards. Members of the family are cross-compatible with many GE branded exciters and drivers. The drives of DC2000, AC2000, CB2000, ME2000, and FC2000 can accept this power strip. The card provides system control level power to the driver it is mounted on and power to the cabinet fan. The board's source AC input is rated from 38 to 115 VAC. The VAC comes with a frequency range of 0 to 500 kHz, depending on the strength of the input voltage.
The DS200DCFBG1BLC contains a number of complex circuit systems designed to power most of the drivers. The card includes AC and DC monitoring circuits, control level power circuits, motor field power circuits and driver circuits. The user can configure 12 jumpers and 7 DIP switches on the card to meet any external requirements. The status of the board is communicated to the user via onboard indicators. Two leds and a neon indicator light are built into the card to provide users with important diagnostic and status information. The board's three fuses are protected to ensure that interruptions or surges do not interrupt the current. Be sure to regularly monitor voltage levels using the five test points integrated into the board.
You must follow the installation parameters provided by the DS200DCFBG1BLC and the drive. These guidelines will ensure that the board and the system on which it is installed operate as intended. For wiring and installation instructions, refer to the series manual and the equipment data sheet. Technical support for all motherboards in the Mark V series was initially provided by manufacturer General Electric.
