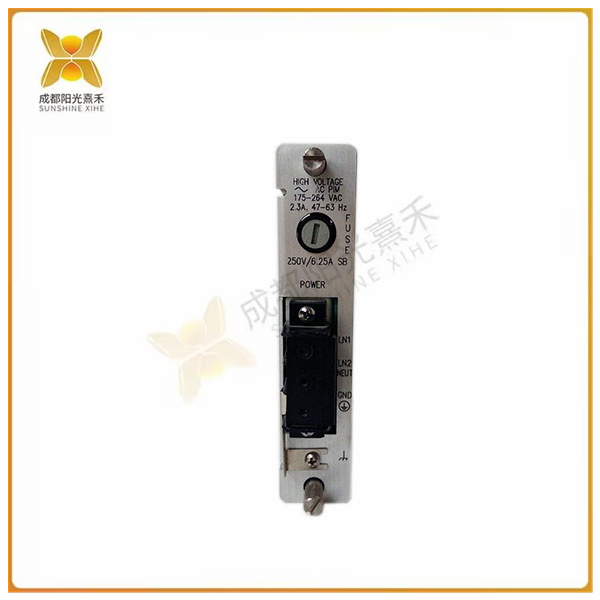

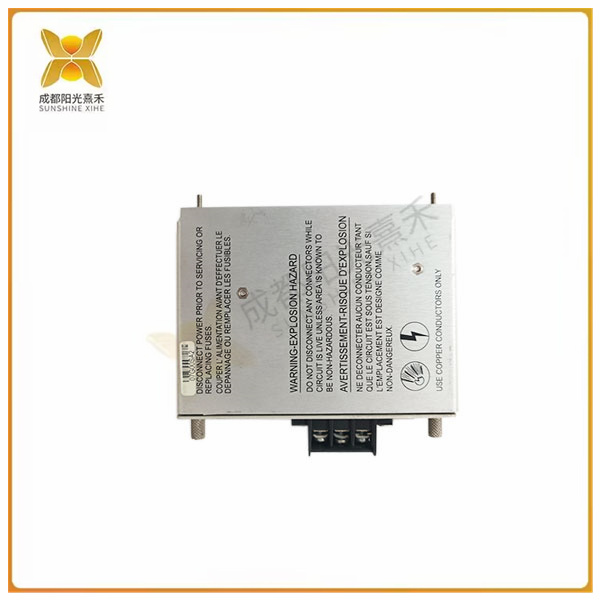

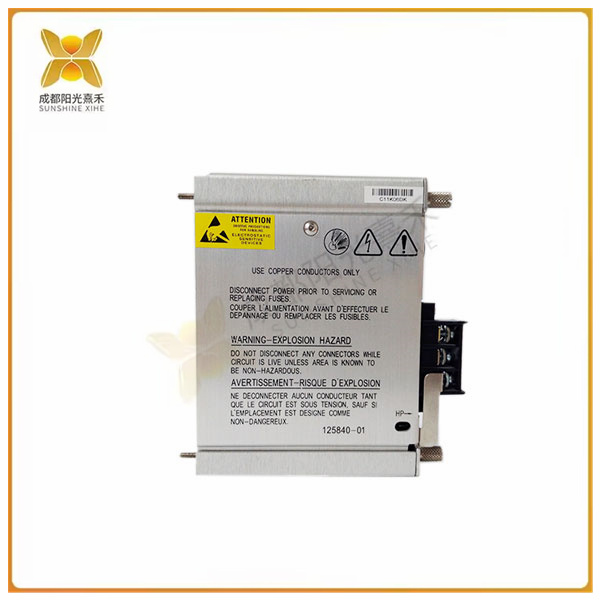

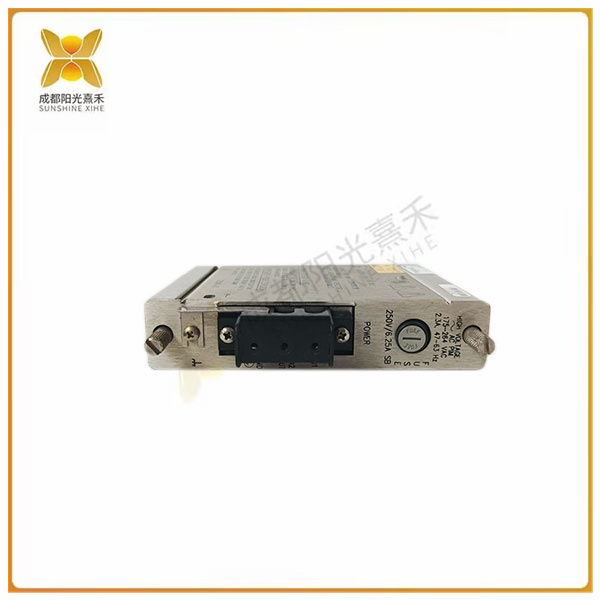

>>>>>型號:125840-01 高壓交流電源輸入模塊 瞬態數據接口模塊
【功能描述】
特征：
半高模塊
3500 系列機架可以包含一個或兩個電源
（3） 制造的版本
Bently Nevada 3500/15 系列電源是半高模塊，必須安裝在機架左側專門設計的插槽中。3500 機架可以包含一個或兩個電源（交流和/或直流的任意組合），任一電源都可以為整個機架供電。如果已安裝，則第二個電源將充當主電源的備用電源。當一個機架中安裝兩個電源時，下部插槽中的電源充當主電源，上部插槽中的電源充當備用電源。只要安裝了第二個電源，卸下或插入任一電源模塊都不會中斷機架的運行。
3500 電源接受各種輸入電壓，并將其轉換為其他 3500 模塊可接受的電壓。3500 系列機械保護系統提供三種電源版本，如下所示：1. 交流電源，2. 高壓直流電源 3.低壓直流電源。
在 3500 機架中，TDI 位于電源旁邊的插槽中。為了持續收集穩態和瞬態動態（波形）數據并通過以太網鏈路將此數據傳輸?shù)街鳈C軟件，它與 M 系列監視器（3500/40M、3500/42M 等）交互。
TDI 具有傳統的靜態數據收集功能。然而，TDI 也可以使用可選的通道啟用磁盤記錄動態、高分辨率的瞬態數據。
功能說明
3500 機架包含 TDI 的通信處理功能。雖然 TDI 執行一些由整個機架共享的任務，但它不是監控系統的關鍵組件，并且與整個系統監控自主機械保護的效果無關。
每個 3500 機架需要一個 TDI 或 RIM，它始終占用插槽 1。（電源旁邊）。
3500 監測系統和兼容軟件之間的鏈接稱為 3500/22M 瞬態數據接口 (TDI)（系統 1 狀態監測和診斷軟件和 3500 系統配置軟件）。TDI 將 3500/20 機架接口模塊 (RIMfunctionality ) 與通信處理器（如 TDXnet）相結合，以收集數據。
>>>>>型號:125840-01 高壓交流電源輸入模塊 瞬態數據接口模塊
【英文介紹】
Features:
Half-height module
The 3500 Series rack can contain one or two power supplies
(3) Manufactured version
The Bently Nevada 3500/15 series power supply is a half-height module that must be installed in a specially designed slot on the left side of the rack. The 3500 rack can contain one or two power supplies (any combination of AC and/or DC), either of which can power the entire rack. If installed, the second power supply acts as a backup to the main power supply. When two power supplies are installed in a rack, the power supply in the lower slot acts as the primary power supply and the power supply in the upper slot acts as the backup power supply. As long as a second power supply is installed, removing or inserting either power module will not interrupt the operation of the rack.
The 3500 power supply accepts a variety of input voltages and converts them to voltages acceptable to other 3500 modules. The 3500 Series mechanical protection system is available in three power supply versions as follows: 1. Ac power, 2. High voltage DC power supply 3. Low voltage DC power supply.
In the 3500 rack, the TDI is located in the slot next to the power supply. It interacts with M-series monitors (3500/40M, 3500/42M, etc.) in order to continuously collect steady-state and transient dynamic (waveform) data and transmit this data to the host software over an Ethernet link.
TDI has traditional static data collection capabilities. However, TDI can also enable the disk to record dynamic, high-resolution transient data using an optional channel.
Function description
The 3500 rack contains the communication processing capabilities of TDI. While TDI performs some tasks shared by the entire rack, it is not a critical component of the monitoring system and is not relevant to how well the entire system monitors autonomous mechanical protection.
Each 3500 rack requires a TDI or RIM, which always occupies slot 1. (Next to the power supply).
The link between the 3500 monitoring system and compatible software is called the 3500/22M Transient Data Interface (TDI) (System 1 condition monitoring and diagnostic software and 3500 system configuration software). TDI combines 3500/20 rack interface modules (RIMfunctionality) with communication processors such as TDXnet to collect data.
