330130-040-00-00|電纜|接近傳感器|

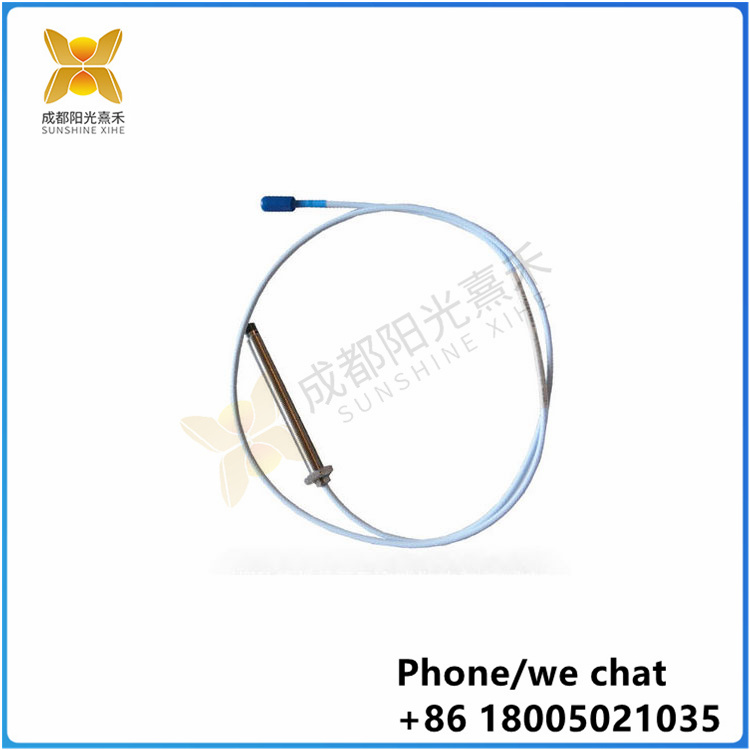

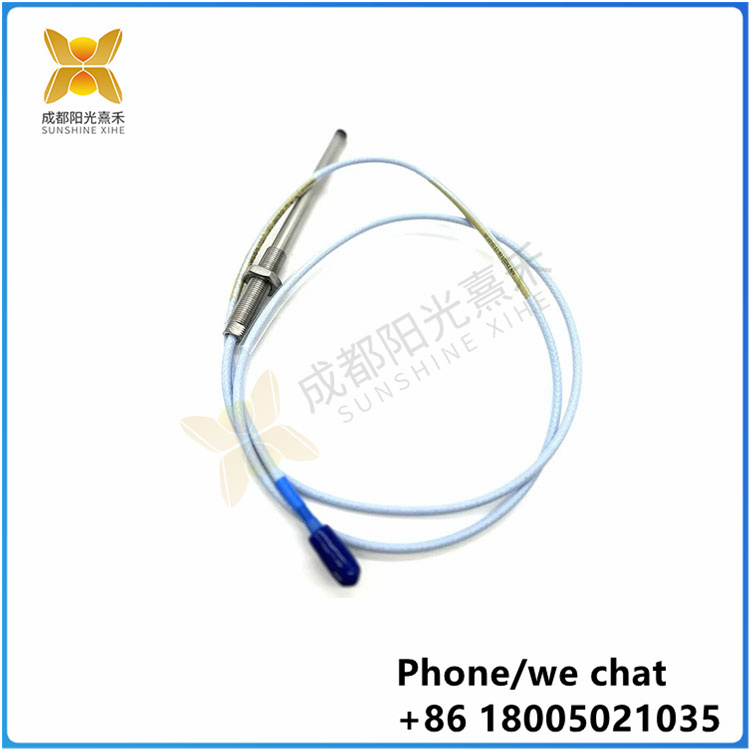

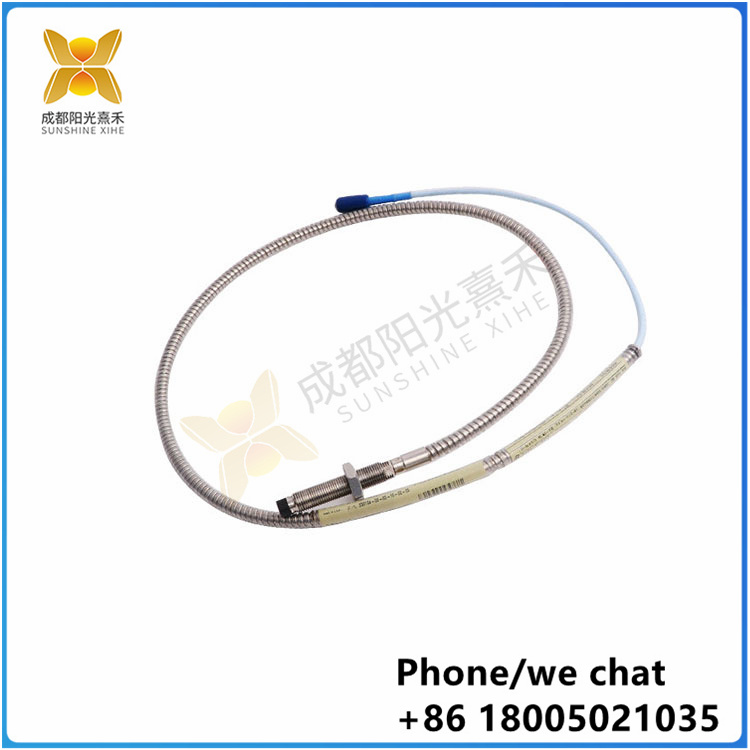

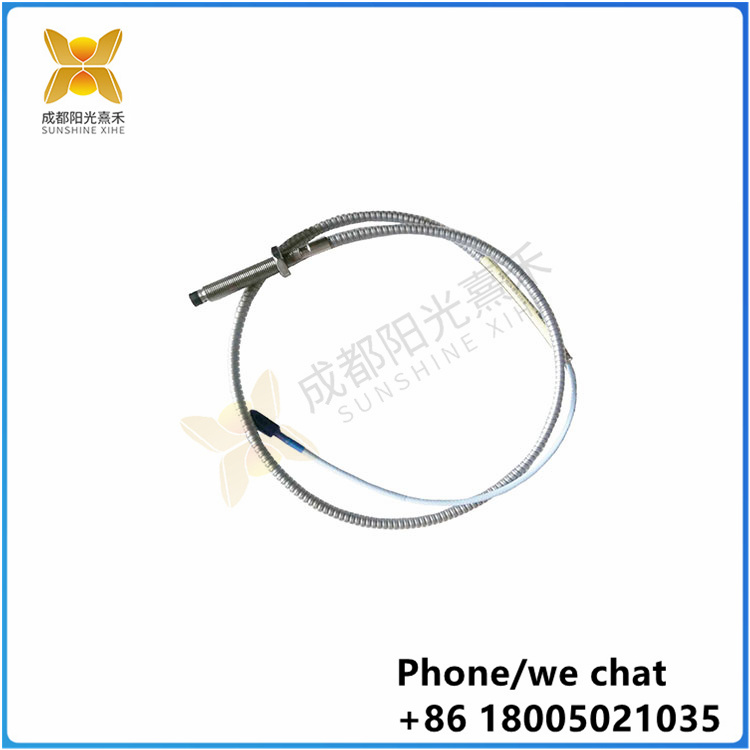

330130-040-00-00 是 Bently Nevada 制造的 3300 XL 標準延長電纜。此外,3300 XL 探頭和延長電纜代表了早期型號的進步。由于采用了專有的TipLoc成型工藝,探頭尖端和探頭主體之間的粘合力更加牢固。為了在探頭電纜和探頭尖端之間實現更安全的連接,探頭的電纜采用獨特的 CableLoc 設計,可提供 330 N (75 lbf) 的拉力。
330130-040-00-00 功能描述
3300 XL 8 mm 探頭和延長電纜(帶 FluidLoc 電纜選件)可防止油和其他液體從機器中泄漏出來。3300 XL 探頭、延長電纜和接近傳感器使用耐腐蝕鍍金的 ClickLoc 連接器。這些連接可以在一定程度上用手指擰緊(擰緊時會“咔噠”一聲),并通過專門設計的鎖定機構鎖定到位。對于安裝或拆卸,這些連接器不需要任何專用設備。
GE / Bently Nevada 的 3300 XL 8mm 接近傳感器系統包括一個 8mm 探頭、一根延長電纜和一個接近傳感器。該系統測量靜態(位置)和動態(振動)測量值,并給出與探頭尖端和觀察到的導電表面之間的距離成正比的輸出電壓。
該系統的主要應用是流體膜軸承機上的振動和位置測量,以及鍵相參考和速度測量。標準 3300 XL 8 mm 5 米系統在機械配置、線性范圍、精度和溫度穩定性方面也完全符合 API 670 標準(第 4 版)。所有 3300 XL 8 mm 接近傳感器系統都能提供這種性能水平。
產品特點
工作溫度:-51 至 177°C,或 -60 至 350°F
電纜長度:4.0 米(13.1 英尺)
重量: 0.14 kg
The 330130-040-00-00 is a 3300 XL standard extension cable manufactured by Bently Nevada. In addition, the 3300 XL probe and extension cable represent an improvement over earlier models. Thanks to the proprietary TipLoc molding process, the adhesive force between the probe tip and the probe body is stronger. For a more secure connection between the probe cable and the probe tip, the probe cable features a unique CableLoc design that provides a pull of 330 N (75 lbf).
330130-040-00-00 Function description
The 3300 XL 8 mm probe and extension cable (with FluidLoc cable option) prevent oil and other liquids from leaking out of the machine. The 3300 XL probes, extension cables and proximity sensors use corrosion-resistant gold-plated ClickLoc connectors. These connections can be tightened to a certain extent with a finger (a "click" when tightened) and locked into place by a specially designed locking mechanism. For installation or removal, these connectors do not require any special equipment.
GE/Bently Nevada's 3300 XL 8mm proximity sensor system includes an 8mm probe, an extension cable, and a proximity sensor. The system measures both static (position) and dynamic (vibration) measurements and gives an output voltage proportional to the distance between the probe tip and the observed conductive surface.
The main applications of the system are vibration and position measurement on fluid film bearing machines, as well as bond phase reference and velocity measurement. The standard 3300 XL 8 mm 5 meter system is also fully API 670 compliant (4th edition) in terms of mechanical configuration, linear range, accuracy and temperature stability. All 3300 XL 8 mm proximity sensor systems deliver this level of performance.
Product characteristics
Operating temperature: -51 to 177°C, or -60 to 350°F
Cable Length: 4.0 m (13.1 ft)
Weight: 0.14 kg
