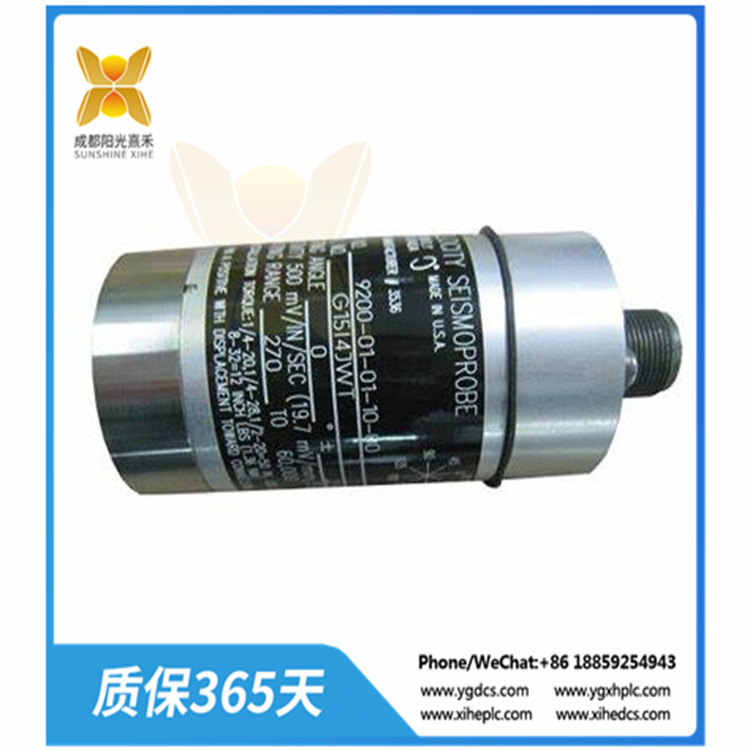

>>>型號:9200-01-01-10-00 雙線速度地震探頭傳感器 用于工業自動化和控制系統
【功能描述】
9200-01-01-10-00雙線速度地震探頭傳感器是一款振動監測產品。該傳感器是兩線結構，采用動線圈技術，能夠直接提供與傳感器振動速度成正比的電壓輸出。
9200-01-01-10-00這款傳感器適用于連續監測或與測試或故障診斷儀表一起應用于周期性測量中，主要用于測量軸承箱、機殼或結構的振動。其安裝角度/最小工作頻率選項為0±2.5, 4.5赫茲（270 cpm），頂部為航空插頭連接，
采用M10X1雙頭螺栓安裝。此外，它的靈敏度為20 mV/mm/s (500 mV/in/s) ±5%，頻率響應范圍為4.5Hz（270 cpm）到1kHz（60,000 cpm）。
9200-01-01-10-00該傳感器系統由9200傳感器、84661或9571電纜和可選的振動監測器（如1900/65、2300/20、3500/42）組成。使用時，請確保按照產品說明和安裝指南正確安裝和配置傳感器，以確保其正常工作并準確監測振動數據。
>>>>型號:9200-01-01-10-00 雙線速度地震探頭傳感器 用于工業自動化和控制系統
【英文介紹】
The 9200-01-01-10-00 dual-wire speed seismic probe sensor is a vibration monitoring product. The sensor is a two-wire structure with moving coil technology that provides a voltage output directly
proportional to the vibration speed of the sensor.
The 9200-01-01-10-00 sensor is suitable for continuous monitoring or for use in periodic measurements with test or fault diagnosis instruments, primarily to measure the vibration of bearing boxes,
housing or structures. The mounting Angle/minimum operating frequency option is 0±2.5, 4.5 Hz (270 cpm), with an aviation plug connection at the top and M10X1 stud mounting. in addition, it has
a sensitivity of 20 mV/mm/s (500 mV/in/s) ±5% and a frequency response range of 4.5Hz (270 cpm) to 1kHz (60,000 cpm).
9200-01-01-10 The sensor system consists of a 9200 sensor, 84661 or 9571 cable, and optional vibration monitors such as 1900/65, 2300/20, 3500/42. When in use, ensure that the sensor is properly
installed and configured according to the product instructions and installation guide to ensure its proper operation and accurate monitoring of vibration data.
