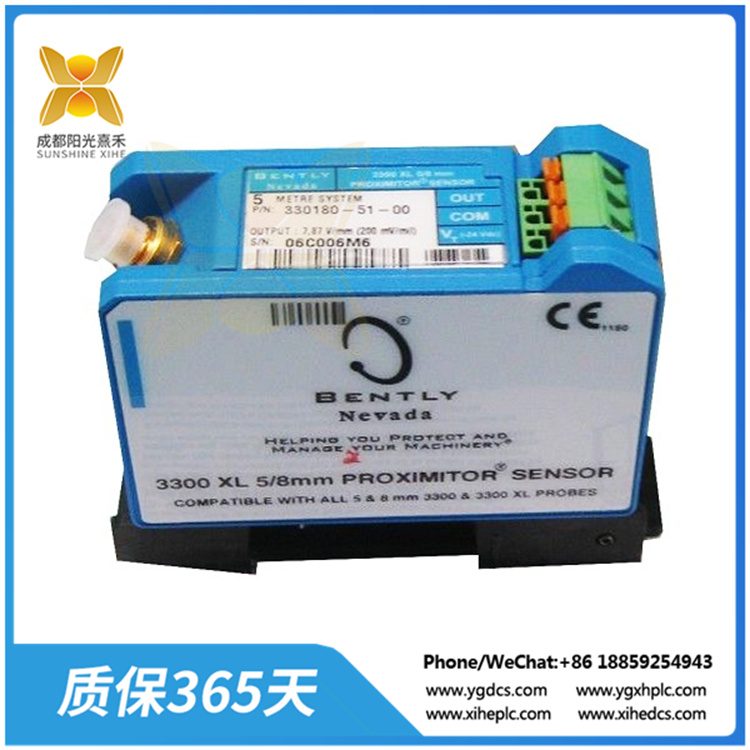

>>>型號:330180-X1-CN 前置傳感器 用于工業自動化和控制系統
【功能描述】
330180-X1-CN是一款前置傳感器，它屬于其3300 XL系列監測系統的一部分。該前置傳感器設計用于軸承機械的軸振動、軸位移、鍵相位和轉速測量，符合美國石油學會(API)制定的670標準。
這意味著它具有高可靠性和準確性，適用于各種工業環境。
330180-X1-CN前置傳感器具有強大的抗無線電干擾能力，即使在安裝于玻璃纖維防護罩中時，也不會受到附近無線電信號的干擾。這一特點確保了傳感器在各種復雜環境中的穩定性和可靠性。
該前置傳感器還用于接收非接觸式bently3300 XL系列5mm、8mm電渦流探頭和延伸電纜的信號，頻率響應為0-10kHz。這種廣泛的頻率響應范圍使其能夠準確捕捉設備的振動和位移信息。
電源規格為-17.5Vdc至-26Vdc，電流最大為12mA，線性范圍為2mm，靈敏度為7.87V/mm（200mV/mil）±5%。這些規格參數確保了傳感器在測量過程中的精確性和穩定性。
該前置傳感器的重量為246g，這使得它便于安裝和維護。此外，由于其出色的性能和廣泛的應用范圍，330180-X1-CN前置傳感器在工業領域中受到了廣泛的認可和應用。
>>>>型號:330180-X1-CN 前置傳感器 用于工業自動化和控制系統
【英文介紹】
The 330180-X1-CN is a front-facing sensor that is part of its 3300 XL series monitoring system. The front sensor is designed for shaft vibration, shaft displacement, key phase and speed measurement of bearing
machinery and complies with the 670 standard established by the American Petroleum Institute (API). This means that it has high reliability and accuracy and is suitable for a variety of industrial environments.
The 330180-X1-CN front sensor has strong radio interference resistance, even when installed in a fiberglass shield, it will not be interfered by nearby radio signals. This feature ensures the stability and reliability
of the sensor in a variety of complex environments.
The front sensor is also used to receive signals from the non-contact bently3300 XL series 5mm and 8mm eddy current probes and extended cables with a frequency response of 0-10kHz. This wide frequency r
esponse range enables it to accurately capture vibration and displacement information of the device.
Power supply specifications range from -17.5Vdc to -26 VDC, current up to 12mA, linear range of 2mm, sensitivity of 7.87V/mm (200mV/mil) ±5%. These specifications ensure the accuracy and stability of the sensor during measurement.
The front sensor weighs 246g, which makes it easy to install and maintain. In addition, due to its excellent performance and wide range of applications, the 330180-X1-CN front sensor has been widely recognized and applied in the industrial field.
