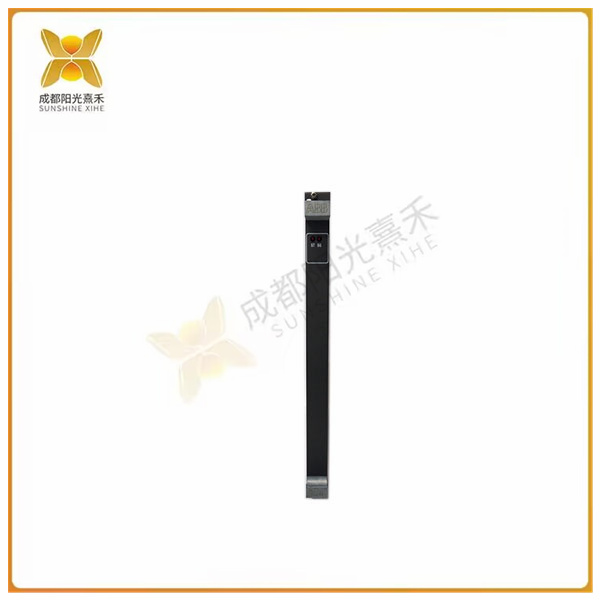

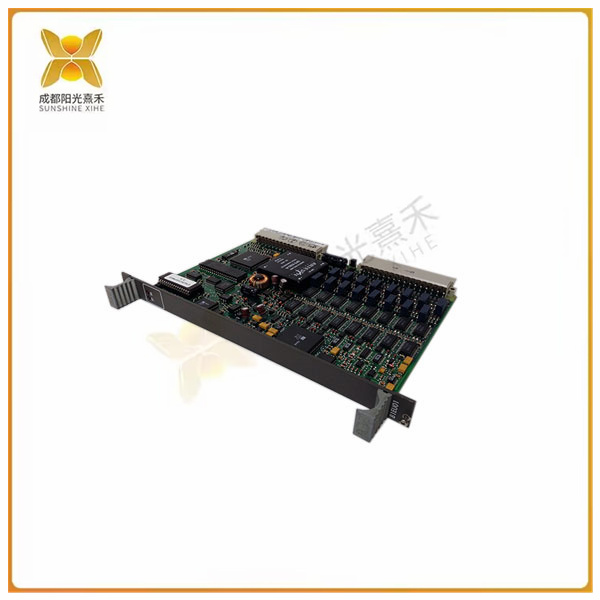

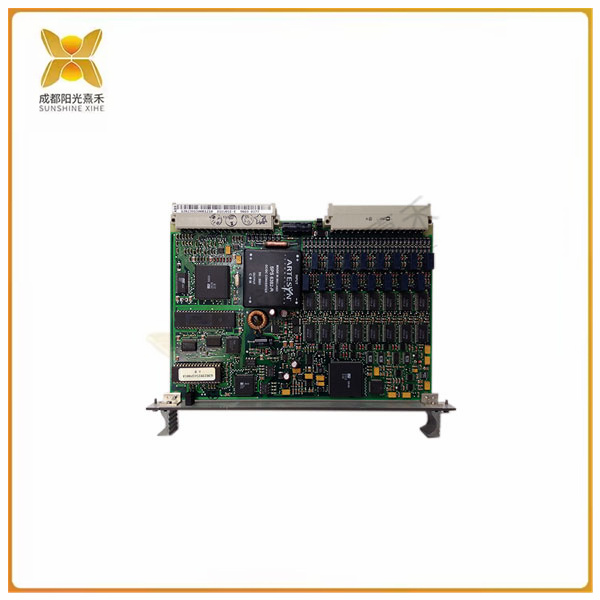

>>>>>型號:81EU01E-E 帶發射器的輸入模塊 帶有外部電源單元
【功能描述】
應用程序
輸入模塊用作以下模塊的替代品
帶發射器的輸入模塊:
81 ea01-e / R1010
無校正功能
- 2線傳感器，4…20ma，由模塊供電
- 4線傳感器，0/4…20 mA，與供應從mod規則
- 4線傳感器，0/4…20ma，帶外置電源
81 ea01-e / R1111
具有校正功能，無未校正輸出
值(原始值)
- 2線傳感器，4…20ma，由模塊供電
- 4線傳感器，0/4…20 mA，與供應從mod規則
- 4線傳感器，0/4…20ma，帶外置電源
81 ea01-e / R1112
具有校正功能，可輸出未校正值
(原始值)
- 2線傳感器，4…20ma，由模塊供電
- 4線傳感器，0/4…20 mA，與供應從mod規則
- 4線傳感器，0/4…20ma，帶外置電源
該模塊共包含5個功能單元。每一個
功能單元可用于任何類型的輸入模式。任何
組合是可能的。分配和設置
所有的參數可以很容易地編程使用
配置列表。程序編制的值存儲在
EEPROM以確保它們?cè)诎l(fā)生故障時不會丟失
電源故障。它們可以隨時更改。
每個模擬信號最多可分配4個極限值。
在一個輸入模塊中，多達5個獨立的校正或?yàn)V波
可以進行計算。編程是由
構建功能塊。與此相關的條件
申請將被考慮在內。
特性
該模塊可以插入任何PROCONTROL站
帶有外部電源單元。它配備了一個用于PROCONTROL站總線的標準接口。
模塊以形式發送轉換后的輸入信號
通過車站總線向PROCONTROL總線發送電報
系統。電報在發出和發送之前都要經過核對
用測試標志標記。這確保了接收模塊規則可以檢查它們的無錯誤傳輸。
通過車站總線接收的電報，例如用于校正計算，由模塊檢查是否無錯誤
基于測試標志的傳輸。
所作的規定是為了消除模塊的功能單元和車站總線之間的干擾。
一種防短路和監控的發射機電源
是否可用于各功能單元，適用于各種
應用程序。
內部監控電路或輸入的響應
信號監測功能以干擾的形式表示，平衡公告ST(一般干擾)在前面
模塊面板。
>>>>>型號:81EU01E-E 帶發射器的輸入模塊 帶有外部電源單元
【英文介紹】
Application
The input module is used as a substitute for the following
input modules with transmitters:
81EA01-E/R1010
without correcting function
- 2-wire transducer, 4 ... 20 mA, with supply from the module
- 4-wire transducer, 0/4 ... 20 mA, with supply from the module
- 4-wire transducer, 0/4 ... 20 mA, with external power supply
81EA01-E/R1111
with correcting function and without output of the uncorrected
value (raw value)
- 2-wire transducer, 4 ... 20 mA, with supply from the module
- 4-wire transducer, 0/4 ... 20 mA, with supply from the module
- 4-wire transducer, 0/4 ... 20 mA, with external power supply
81EA01-E/R1112
with correcting function and output of the uncorrected value
(raw value)
- 2-wire transducer, 4 ... 20 mA, with supply from the module
- 4-wire transducer, 0/4 ... 20 mA, with supply from the module
- 4-wire transducer, 0/4 ... 20 mA, with external power supply
The module incorporates a total of 5 function units. Each
function unit may be used for any type of input mode. Any
combination is possible. The allocation as well as the settings
of all the parameters can be programmed easily using the
configuration list. The programmed values are stored in an
EEPROM to ensure that they are not lost in the event of a
power failure. They can be changed any time.
Every analog signal can be assigned up to 4 limit values.
In an input module, up to 5 independent correction or filter
calcuations can be carried out. Programming is done by
structuring function blocks. The conditions relevant to this
application are to be taken into consideration.
Features
The module can be plugged into any PROCONTROL station
with an external power supply unit. It is equipped with a standard interface for the PROCONTROL station bus.
The module sends the converted input signals in the form of
telegrams over the station bus to the PROCONTROL bus
system. The telegrams are checked before they are sent and
marked with test flags. This ensures that the receiving module can check them for error-free transmission.
The telegrams received over the station bus, e.g. for correction calculations, are checked by the module for error-free
transmission based on their test flags.
Provision is made to eliminate interference among the function units of the module and the station bus.
A short-circuit-proof and monitored transmitter power supply
is available for each function unit, suitable for the various
applications.
A response of the internal monitoring circuits or of the input
signal monitoring function is indicated in the form of a disturbance annunciation ST (general disturbance) on the front
panel of the module.
