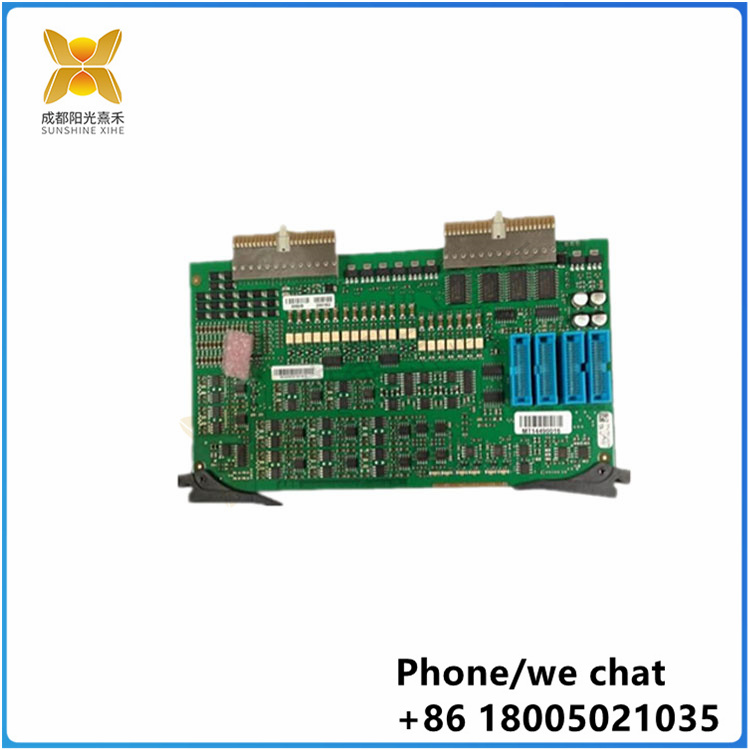

3BHB009162P0001|T8110B|信號調理板|
3BUS208797-001信號調理板，也稱為信號調理模塊或信號調理單元，是工業自動化控制系統中的一個重要組成部分。它主要負責將傳感器輸出的信號進行預處理，使其滿足后續信號處理或控制系統對信號質量的要求。以下是對信號調理板的詳細解析：
一、定義與作用
定義：信號調理板是一種電子設備，用于對傳感器輸出的原始信號進行放大、濾波、隔離、轉換等處理，以便后續的信號處理系統能夠準確、可靠地接收和處理這些信號。
作用：
信號放大：增強傳感器輸出的微弱信號，使其達到后續電路或系統所需的電平。
信號濾波：去除信號中的噪聲和干擾，提高信號的信噪比。
信號隔離：防止信號之間的相互影響，保護系統免受電氣干擾。
信號轉換：將傳感器輸出的非標準信號（如電流、電壓、頻率等）轉換為系統所需的標準信號（如模擬信號、數字信號等）。
二、主要類型
信號調理板可以根據不同的應用場景和需求進行分類，常見的類型包括：
模擬信號調理板：用于處理模擬信號，如電壓、電流等。
數字信號調理板：用于處理數字信號，如頻率、脈沖等。
特殊功能調理板：如溫度信號調理板、壓力信號調理板等，針對特定類型的傳感器信號進行處理。
三、3BUS208797-001應用場景
信號調理板廣泛應用于工業自動化、過程控制、儀器儀表、航空航天、交通運輸?shù)阮I域。在工業自動化控制系統中，信號調理板通常與傳感器、PLC（可編程邏輯控制器）、DCS（分散控制系統）等設備配合使用，實現對生產過程的監測和控制。
四、3BUS208797-001選擇與配置
在選擇和配置信號調理板時，需要考慮以下因素：
傳感器類型：根據傳感器的輸出信號類型（如模擬信號、數字信號等）和特性（如量程、精度等）選擇合適的信號調理板。
系統需求：根據控制系統的需求（如信號放大倍數、濾波頻率、隔離電壓等）確定信號調理板的參數。
環境適應性：考慮信號調理板在工作環境中的適應性（如溫度、濕度、電磁干擾等）。
性價比：在保證性能和質量的前提下，選擇性價比高的信號調理板。
3BUS208777-001 Signal conditioning board, also known as signal conditioning module or signal conditioning unit, is an important part of the industrial automation control system. It is mainly responsible for preprocessing the signal output by the sensor, so that it can meet the requirements of subsequent signal processing or control system for signal quality. The following is a detailed analysis of the signal conditioning board:
Definition and function
Definition: The signal conditioning board is an electronic device used to amplify, filter, isolate, and convert the original signal output of the sensor, so that the subsequent signal processing system can accurately and reliably receive and process these signals.
Functions:
Signal amplification: The weak signal output by the sensor is enhanced to reach the level required by the subsequent circuit or system.
Signal filtering: remove the noise and interference in the signal, improve the signal to noise ratio.
Signal isolation: prevents the interaction between signals and protects the system from electrical interference.
Signal conversion: The sensor output of non-standard signals (such as current, voltage, frequency, etc.) into the system required standard signals (such as analog signals, digital signals, etc.).
Two, the main types
Signal conditioning boards can be classified according to different application scenarios and needs, common types include:
Analog signal conditioning board: used to process analog signals, such as voltage, current, etc.
Digital signal conditioning board: used to process digital signals, such as frequency, pulse, etc.
Special function conditioning board: such as temperature signal conditioning board, pressure signal conditioning board, etc., for specific types of sensor signals processing.
3. Application Scenarios of 3BUS208777-001
Signal conditioning board is widely used in industrial automation, process control, instrumentation, aerospace, transportation and other fields. In the industrial automation control system, the signal conditioning board is usually used with sensors, PLC (programmable logic controller), DCS (distributed control system) and other equipment to achieve the monitoring and control of the production process.
4. 3BUS208777-001 Selection and configuration
When selecting and configuring the signal conditioning board, the following factors need to be considered:
Sensor type: Select the appropriate signal conditioning board according to the output signal type of the sensor (such as analog signal, digital signal, etc.) and characteristics (such as range, accuracy, etc.).
System requirements: Determine the parameters of the signal conditioning board according to the requirements of the control system (such as signal amplification, filtering frequency, isolation voltage, etc.).
Environmental adaptability: Consider the adaptability of the signal conditioning board in the working environment (such as temperature, humidity, electromagnetic interference, etc.).
Cost performance: under the premise of ensuring performance and quality, choose a cost-effective signal conditioning board.
