PFTL101B 5.0KN 3BSE004191R1 | PFCL201C 20KN 3BSE023409R20 | 橫向測量壓磁式壓頭
型號：PFTL101B 5.0KN 3BSE004191R1
類別：橫向測量壓磁式壓頭
成色：全新/非全新
貨期：現貨
質保：一年
ABB 水平型枕式張力計壓頭非常適用于張力小、軋輥重和運行速度高的應用，冶金行業往往有很多這類應用。
概覽
ABB 水平型枕式張力計壓頭有三個規格：標準型PFTL 101A/B，通常被用于常規的金屬處理線。該壓頭適用于軋輥重、張力范圍寬和運行速度高的應用。
對于冷軋機、退火和鍍鋅生產線中有乳化液的帶材張力測量應用，推薦使用軋機型的PFTL 101AE/BE。PFTL 101AE/BE 壓頭使用固定的連接線纜，防護等級達到IP 66 ，可長期精確可靠運行在有乳化液的應用環境中。所有的ABB 張力計壓頭交貨時均進行了標定。
防酸型PFTL 101AER/BER 壓頭是專為酸洗生產線而設計，達到防護等級IP 66/67。
ABB的Millmate 帶材張力測量系統壓頭，是以1954年獲得專利的、著名的Pressductor?磁致效應為基礎的，根據該原理，鋼材的磁特性會受到機械作用力的影響。
在傳感器內有四個孔。相互垂直的兩個線圈通過這些孔纏繞在一起。一個線圈被施加交流電，另一個線圈作為測量線圈。由于兩個線圈相互垂直，只要傳感器上沒有負荷，它們之間就沒有磁耦合。
如果傳感器上有負荷（如圖所示），磁場特性就會改變。在受力方向上鋼材的導磁率將降低，在垂直方向上將增加。這導致磁通對稱性發生變化，部分磁通將誘導二次側線圈產生感應電壓。感應電壓與負荷成比。
ABB獨有的壓磁?技術讓Mini系列枕式壓頭非同尋常的堅固，讓它們能承受各種不同的工作條件。

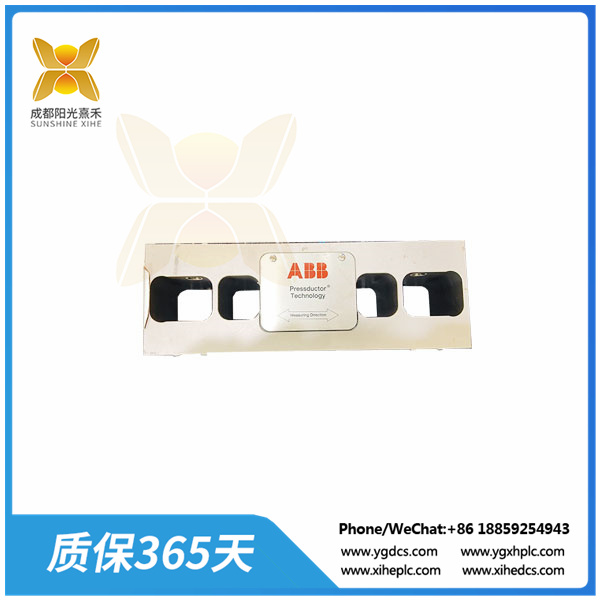

Model ： PFTL101B 5.0KN 3BSE004191R1
Category: Transverse measuring piezomagnetic indenter
Finish: New/not new
Delivery time: from stock
Warranty: One year
ABB horizontal pillow tensiometer indenters are ideal for applications with low tension, heavy rolls and high running speeds, which are often found in the metallurgical industry.
overview
ABB horizontal pillow tensiometer heads are available in three sizes: Standard PFTL 101A/B, which is commonly used in conventional metal handling lines. The indenter is suitable for applications with heavy rolls, wide tension ranges and high operating speeds.
PFTL 101AE/BE is recommended for strip tension measurement applications with emulsion in cold rolling, annealing and zinc plating lines. The PFTL 101AE/BE indenter uses a fixed connection cable and is protected to IP 66 for accurate and reliable long-term operation in emulsion applications. All ABB tensiometer indenters are calibrated at delivery.
The acid proof PFTL 101AER/BER indenter is designed for pickling lines and is rated IP 66/67.
ABB's Millmate strip tension measuring system indenter is based on the famous Pressductor? magnetic effect, patented in 1954, according to which the magnetic properties of steel are affected by mechanical forces.
There are four holes in the sensor. Two coils perpendicular to each other are wound together through these holes. One coil is applied alternating current and the other coil acts as the measuring coil. Since the two coils are perpendicular to each other, there is no magnetic coupling between them as long as there is no load on the sensor.
If there is a load on the sensor (as shown in the figure), the magnetic field characteristics will change. The magnetic permeability of the steel will decrease in the direction of the force and increase in the vertical direction. This results in a change in the symmetry of the magnetic flux, and part of the magnetic flux will induce induced voltage in the secondary side coil. The induced voltage is proportional to the load.
ABB's unique piezomagnetic ? technology makes the Mini series of pillow indenters exceptionally strong, allowing them to withstand a wide range of operating conditions.
