AI880A 3BSE039293R1 | 模擬量輸入模塊 | SNAT607 MCI | NTAI06
型號：AI880A 3BSE039293R1
類別：模擬量輸入模塊
成色：全新/非全新
質保：一年
快遞：順豐/德邦
AI880A 高完整性模擬量輸入模塊專為單一和冗余配置而設計。該模塊具有 8 個電流輸入通道。輸入電阻為 250 歐姆。
該模塊將外部變送器電源分配到每個通道。這增加了一個簡單的連接，將電源分配到 2 線或 3 線制變送器。變送器功率受到監控并限制電流。所有 8 個通道都與 ModuleBus 隔離在一個組中。模塊的電源由ModuleBus上的24 V產生。
AI880A 符合 NAMUR 建議 NE43，并支持可配置的超量程和欠限。
特點和優勢
8 個通道，用于 0...20 mA、4...20 mA、單端單極性輸入
單一或冗余配置
1 組 8 個通道，與地隔離
12 位分辨率
環路監督 DI 功能
可配置現場功率輸出的報警限值
電流輸入的可配置過/下范圍
每個通道的發射機電流有限
先進的板載診斷
通過 IEC 61508 SIL3 認證
根據 EN 954-1 認證的 4 類
符合 NAMUR 建議 NE43，并支持可配置的超量程和欠限
HART直通通信(AI880A)

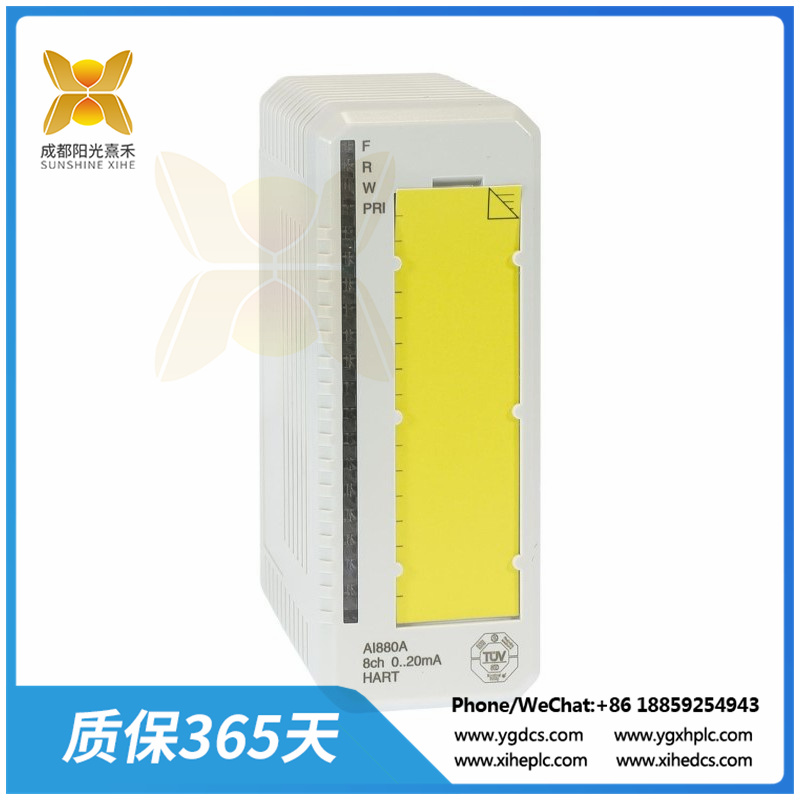

AI880A 3BSE039293R1 | Analog input module | SNAT607 MCI | NTAI06
Model: AI880A 3BSE039293R1
Category: Analog input module
Finish: New/not new
Warranty: One year
Express: SF Express/Debon
The AI880A High integrity analog input module is designed for single and redundant configurations. The module has 8 current input channels. The input resistance is 250 ohms.
This module distributes external transmitter power to each channel. This adds a simple connection to distribute power to a 2 - or 3-wire transmitter. Transmitter power is monitored and current is limited. All eight channels are isolated from the ModuleBus in a group. The power supply for the module is generated by 24 V on the ModuleBus.
The AI880A complies with NAMUR recommendation NE43 and supports configurable overranges and underlimits.
Characteristics and advantages
8 channels for 0... 20 mA, 4... 20 mA, single-ended unipolar input
Single or redundant configuration
1 group of 8 channels, isolated from the ground
12-bit resolution
Loop monitors the DI function
Alarm limits for field power output can be configured
Configurable over/under range of current input
Each channel has a limited transmitter current
Advanced onboard diagnostics
Certified by IEC 61508 SIL3
Category 4 certified according to EN 954-1
Complies with NAMUR recommendation NE43 and supports configurable overranges and underlimits
HART Direct Communication (AI880A)
