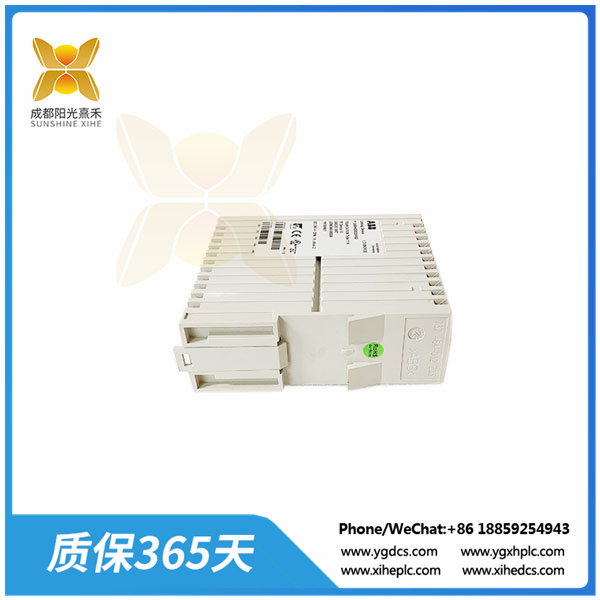

DSAI146 3BSE007949R1 | DDSAI 146 模擬輸入單元 31 ch.鉑100
型號：DSAI146 3BSE007949R1
類別：DDSAI 146 模擬輸入單元 31 ch.鉑100，
成色：全新/非全新
快遞：順豐/德邦
質保：一年
貨期：現貨
產品凈厚度/長度：324 毫米
產品凈高：22.5 毫米
產品凈寬：225 毫米
產品凈重：0.317 千克
.模擬輸入板，也稱為模擬輸入模塊，是專門用于模擬量信號采集和轉換的設備。
使用模擬輸入板的一般步驟包括：
硬件準備與安裝：DSAI146 3BSE007949R1 選擇合適的模擬輸入板，確保其規格與PLC系統兼容。將模擬輸入板插入PLC的擴展槽中，并使用螺絲固定。
軟件配置：打開PLC編程軟件，創建新項目并添加模擬輸入板。設置模塊的參數，包括輸入通道、采樣速率、分辨率、輸入信號類型等。
連接傳感器：將傳感器連接到模擬輸入板的輸入通道上，確保接口匹配并按照接線圖正確連接。
編程與調試：DSAI146 3BSE007949R1 在PLC編程軟件中編寫相應的程序，用于讀取模擬輸入板的值并進行處理。將程序下載到PLC中進行測試和調試，確保模擬輸入板能夠正確讀取傳感器的值。
DSAI146 3BSE007949R1 | DDSAI 146 Analog Input Unit 31 ch. Platinum 100 |
Model: DSAI146 3BSE007949R1
Category: DDSAI 146 Analog Input Unit 31 CH.Platinum 100,
Finish: New/not new
Express: SF Express/Debon
Warranty: One year
Delivery time: from stock
Product net thickness/length: 324 mm
Product height: 22.5 mm
Product width: 225 mm
Net weight: 0.317 kg
Analog input board, also known as analog input module, is a device specially used for analog signal acquisition and conversion.
General steps to use an analog pad include:
Hardware preparation and installation: DSAI146 3BSE007949R1 Select the appropriate analog input board to ensure that its specifications are compatible with the PLC system. Insert the analog pad into the expansion slot of the PLC and secure it with screws.
Software configuration: Open the PLC programming software, create a new project and add an analog input pad. Set the parameters of the module, including input channel, sample rate, resolution, input signal type, etc.
Connect the sensor: Connect the sensor to the input channel of the analog input board, ensuring that the interface matches and is connected correctly according to the wiring diagram.
Programming and debugging: DSAI146 3BSE007949R1 write the corresponding program in PLC programming software for reading the value of the analog input board and processing. The program is downloaded to the PLC for testing and debugging to ensure that the analog pad can correctly read the value of the sensor.
