PDP800 | DI840 3BSE020836R1 DP V0/V1/V2 主控模塊 | 負責整個系統的指令和決策

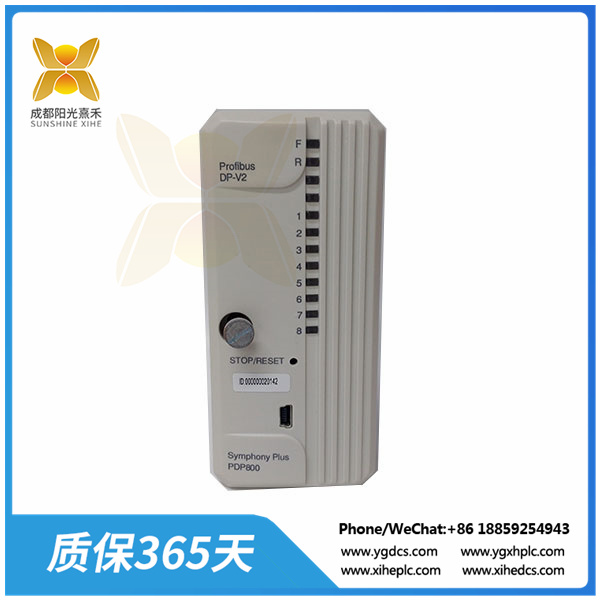

型號：PDP800
目錄說明：
Profibus DP V0/V1/V2 主控模塊
詳細描述：
支持多達 125 個從站，速率高達 12 MBps
主控模塊是控制系統中的核心部分，負責整個系統的指令和決策。 以下是關于主控模塊的詳細解釋：
定義與構成：
PDP800 主控模塊是控制系統的核心，它通過程序控制系統的各個模塊的工作。
主控模塊一般由單片機、嵌入式處理器、FPGA、DSP等芯片構成，能夠?qū)崿F(xiàn)復雜的算法運算和控制功能。
核心器件：
主控模塊的核心器件是主控芯片，也稱為微控制器(MCU)或中央處理器(CPU)。
主控模塊還包括USB供電電路、電源去耦電路、蜂鳴報警器電路、程序啟動電路、數據存儲電路以及存儲備用電路等。
主要功能：
對系統進行整體控制和管理。
讀取、處理傳感器或用戶輸入的信號。
根據程序算法實時更新輸出控制信號。
集成多個模塊，實現多項功能。
通信與交互：
PDP800 主控模塊與上位機之間通過USB串口通信電路進行信息溝通。
主控模塊能夠接收CAN總線發來的單元采集信號、數據，進行分析和處理，轉化為數字量后發送給上位機進行顯示和存儲。
應用場景：
PDP800 主控模塊在工業控制、電子制造、自動化生產、機器人控制、智能樓宇、智能交通等領域有廣泛應用。
例如，在智能樓宇中，主控模塊可以完成燈光調節、空調控制、門禁管理、監控系統以及數據分析等任務。
Model: PDP800
Directory description:
Profibus DP V0/V1/V2 main control module
Detailed description:
Supports up to 125 slave stations at rates up to 12 MBps
The main control module is the core part of the control system, which is responsible for the instruction and decision of the whole system. The following is a detailed explanation of the main control module:
Definition and composition:
PDP800 main control module is the core of the control system, it controls the work of each module of the system through the program.
The main control module is generally composed of single chip microcomputer, embedded processor, FPGA, DSP and other chips, which can realize complex algorithm operation and control functions.
Core devices:
The core device of the main control module is the main control chip, also known as the microcontroller (MCU) or central processing unit (CPU).
The main control module also includes USB power supply circuit, power decoupling circuit, buzzer alarm circuit, program start circuit, data storage circuit and storage backup circuit.
Main functions:
Overall control and management of the system.
Read and process signals from sensors or user input.
Update the output control signal in real time according to the program algorithm.
Integrate multiple modules to achieve multiple functions.
Communication and interaction:
The PDP800 master module communicates with the host computer through the USB serial port communication circuit.
The main control module CAN receive the unit acquisition signal and data from the CAN bus, analyze and process it, convert it into a digital quantity and send it to the host computer for display and storage.
Application scenario:
PDP800 master control module is widely used in industrial control, electronic manufacturing, automatic production, robot control, intelligent building, intelligent transportation and other fields.
For example, in an intelligent building, the main control module can complete tasks such as lighting adjustment, air conditioning control, access control, monitoring system and data analysis.
