>>>>型號:RED615 線路差動保護和測控裝置 高精度測量
【功能描述】
RED615是一款專用的輸電線路差動保護裝置，作為分相、雙端的線路差動保護和測控裝置，能夠完美協調公共和工業配電網絡的架空線路和電纜饋線。

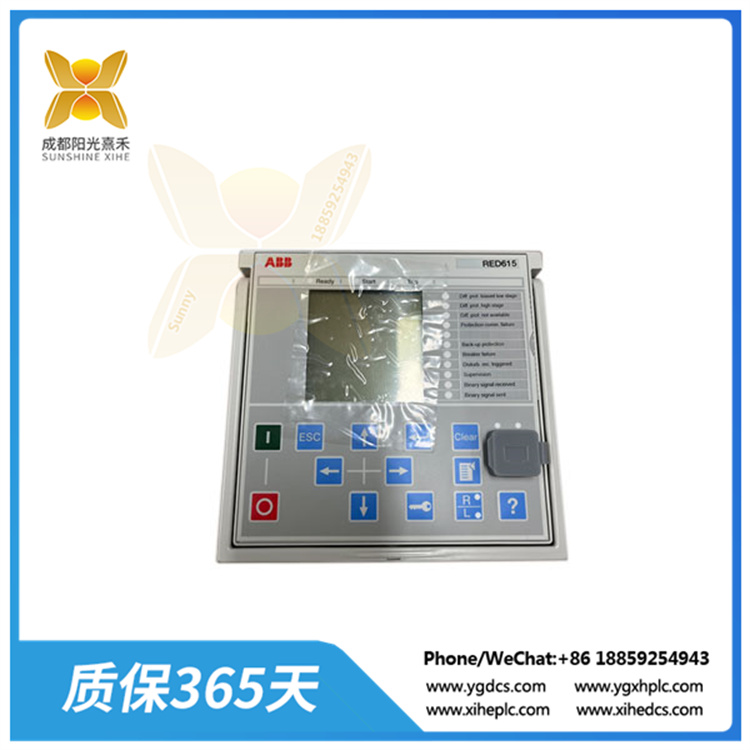

RED615面板作為該裝置的一部分，具有以下特點和功能：
高精度測量：RED615具有非常高的測量精度，能夠達到0.2級，確保測量結果的準確性和可靠性。
高速開關能力：RED615能在數毫秒內觸發斷路器，確保系統在故障時得到及時保護，減少損失。
豐富的保護功能：提供兩段分相線路差動保護、過電流保護、負序電流保護和斷路器失靈保護，同時具有自保持和抑制二次諧波涌流的功能。
可遠方/就地切換的斷路器控制功能：方便用戶根據實際情況進行靈活操作。
通訊功能：內嵌IEC61850通訊標準，支持GOOSE信息故障錄波功能，可采集12個交流量通道和64個開關量通道，實現智能設備間的互操作，提供良好的系統擴展性。
此外，RED615面板還具備以下特點：
中文人機界面：大屏幕液晶顯示，提供豐富的面板操作按鈕，方便用戶進行操作和查看相關信息。
全面的狀態監視功能：包括CT、PT、跳、合閘回路、斷路器狀態等，為日常維護提供有效的參考數據，保證設備的正常運行。
增強版的故障錄波功能：具有高采樣頻率和更長的錄波記錄，有助于分析故障原因。
總的來說，RED615面板作為ABB RED615差動保護裝置的一部分，不僅具有高精度測量和高速開關能力，還提供了豐富的保護和控制功能，以及友好的用戶界面和全面的狀態監視功能，
為電力系統的安全穩定運行提供了強有力的保障。
>>>>型號:RED615 線路差動保護和測控裝置 高精度測量
【英文介紹】
RED615 is a dedicated transmission line differential protection device that acts as a split-phase, double-ended line differential protection and measurement and control device to perfectly coordinate overhead
lines and cable feeders for public and industrial distribution networks.
The RED615 panel, as part of the device, has the following features and functions:
High precision measurement: RED615 has a very high measurement accuracy, able to reach 0.2, to ensure the accuracy and reliability of measurement results.
High-speed switching capability: RED615 can trigger the circuit breaker in a few milliseconds, ensuring that the system is protected in time in case of failure and reducing losses.
Rich protection functions: provides two-phase line differential protection, overcurrent protection, negative sequence current protection and circuit breaker failure protection, and has the function of self-preservation
and suppression of second harmonic inrush current.
Remote/local switch circuit breaker control function: convenient for users to operate flexibly according to the actual situation.
Communication function: Embedded IEC61850 communication standard, support GOOSE information fault recording function, can collect 12 AC channels and 64 switching channels, realize the interoperation
between intelligent devices, provide good system scalability.
In addition, the RED615 panel has the following features:
Chinese man-machine interface: large-screen LCD display, providing a wealth of panel operation buttons, convenient for users to operate and view related information.
Comprehensive status monitoring function: including CT, PT, jump, closing loop, circuit breaker status, etc., to provide effective reference data for daily maintenance, to ensure the normal operation of equipment.
Enhanced fault recording function: With high sampling frequency and longer wave recording, it helps to analyze the cause of failure.
In general, as part of ABB's RED615 differential protection device, the RED615 panel not only has high-precision measurement and high-speed switching capabilities, but also provides a wealth of protection and control
functions, as well as a friendly user interface and comprehensive condition monitoring functions, providing a strong guarantee for the safe and stable operation of the power system.
