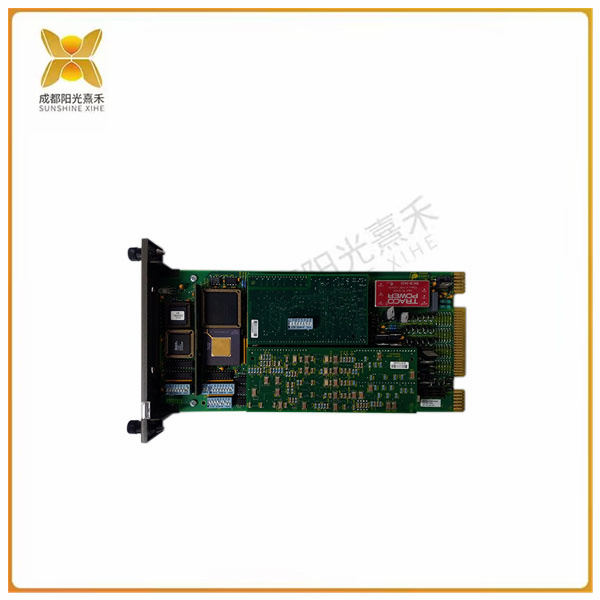

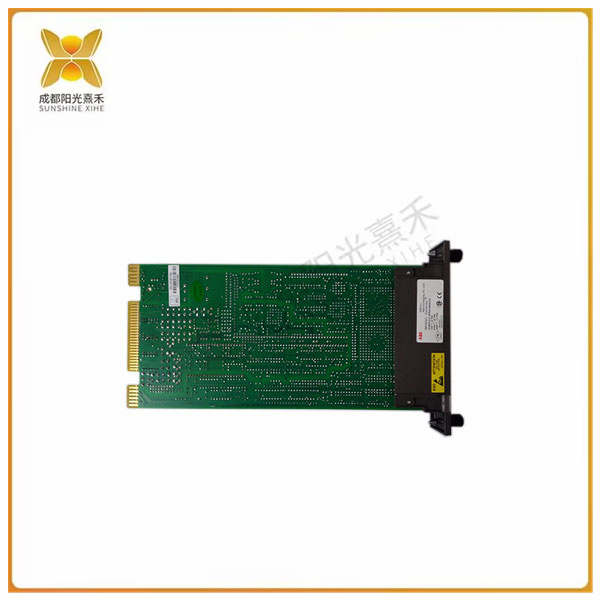

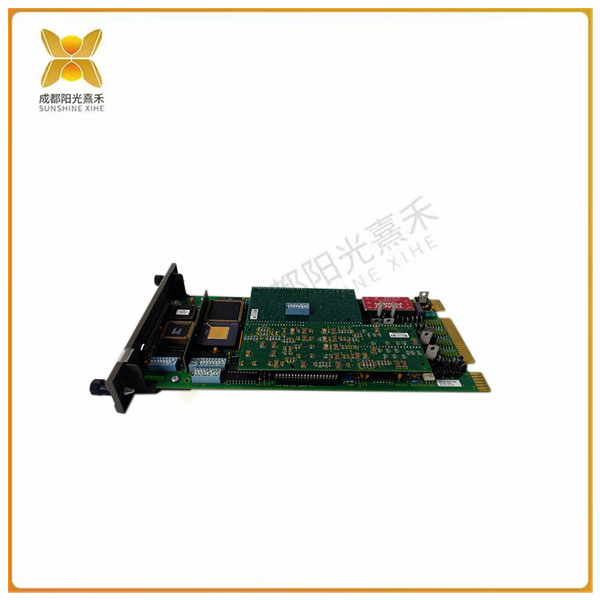

>>>>>型號:IMHSS03 液壓伺服模塊 印刷電路板
【功能描述】
IMHSS03液壓伺服模塊
技術規格：
IMHSS03
ABB公司
貝利
液壓伺服模塊
印刷電路板
汽輪機控制系統
其他信息
Bailey ETSI IMHSS03 液壓伺服模塊提供了一個接口，處理器模塊可以通過該接口通過伺服閥控制液壓執行器。
預計運輸尺寸尺寸
：8.0“ x 2.0” x 13.0“
（20.3 cm x 5.1 cm x 33.0 cm） 重量：1 磅 4.0 盎司（0.6 千克）
IMHSS03液壓伺服模塊是INFI 90?系統中用于控制渦輪機速度的閥位控制模塊。它將伺服閥或I/H轉換器連接到IMMFP01、IMMFP02或IMMFP03多功能處理器模塊。多功能處理器（MFP）模塊通過向液壓伺服（HSS）模塊發送位置需求來控制蒸汽或燃?xì)廨啓C(jī)節流閥的位置。HSS模塊驅動其輸出以打開或關閉節流閥以匹配位置需求。MFP模塊使用IMFCS01頻率計數器模塊來測量渦輪轉速。頻率計數器模塊通過對渦輪軸上的磁拾音器發出的脈沖進行計數和定時來測量渦輪機轉速。MFP模塊使用此計數來計算渦輪轉速，并根據設定點計算新需求。
和諧機架I/O系統采用了各種各樣的
輸入，輸出，信號調理模塊接口
向Symphony?企業管理發送過程信號
和控制系統。模塊類型，范圍從標準
模擬和數字I/O到專業I/O，如
渦輪機控制，現場總線和SOE，可以結合到pro提供一套全面的功能，以滿足所有市場
以及工業需求。
此外，和諧機架的I/O，提供功能在
模塊安裝單元(MMU)水平和和諧塊
I/O可以與一組Harmony控制器并行運行，以形成特定的最佳解決方案
>>>>>型號:IMHSS03 液壓伺服模塊 印刷電路板
【英文介紹】
IMHSS03 hydraulic servo module
Technical specifications:
IMHSS03
ABB Corporation
Bailey
Hydraulic servo module
Printed circuit board
Steam turbine control system
Other information
The Bailey ETSI IMHSS03 hydraulic servo module provides an interface through which the processor module can control the hydraulic actuator via the servo valve.
Estimated shipping dimensions Dimensions
8.0 "x 2.0" x 13.0"
(20.3 cm x 5.1 cm x 33.0 cm) Weight: 1 lb 4.0 oz (0.6 kg)
The IMHSS03 hydraulic servo module is a valve position control module for turbine speed control in the INFI 90? system. It connects the servo valve or I/H converter to the IMMFP01, IMMFP02 or IMMFP03 multifunctional processor module. The Multi-function processor (MFP) module controls the position of the steam or gas turbine throttle by sending position requirements to the hydraulic servo (HSS) module. The HSS module drives its output to open or close the throttle to match the position requirements. The MFP module uses the IMFCS01 frequency counter module to measure turbine speed. The frequency counter module measures turbine speed by counting and timing pulses emitted by magnetic pickups on the turbine shaft. The MFP module uses this count to calculate turbine speed and calculate new requirements based on set points.
Harmony Rack I/O systems use a variety of
Input, output, signal conditioning module interface
Send process signals to Symphony? Enterprise Management
And control systems. Module types range from standard
Analog and digital I/O to professional I/O, e.g
Turbine control, fieldbus and SOE, can be combined with the pro to provide a comprehensive set of features to meet all markets
And industrial demand.
In addition, harmonious rack I/O provides functionality in
Module mounting unit (MMU) horizontal and harmonious block
I/O can be run in parallel with a set of Harmony controllers to form a particular optimal solution
