>>>>>型號:5SHX1445H0002 3BHL000387P0101 驅動板模塊
【功能描述】

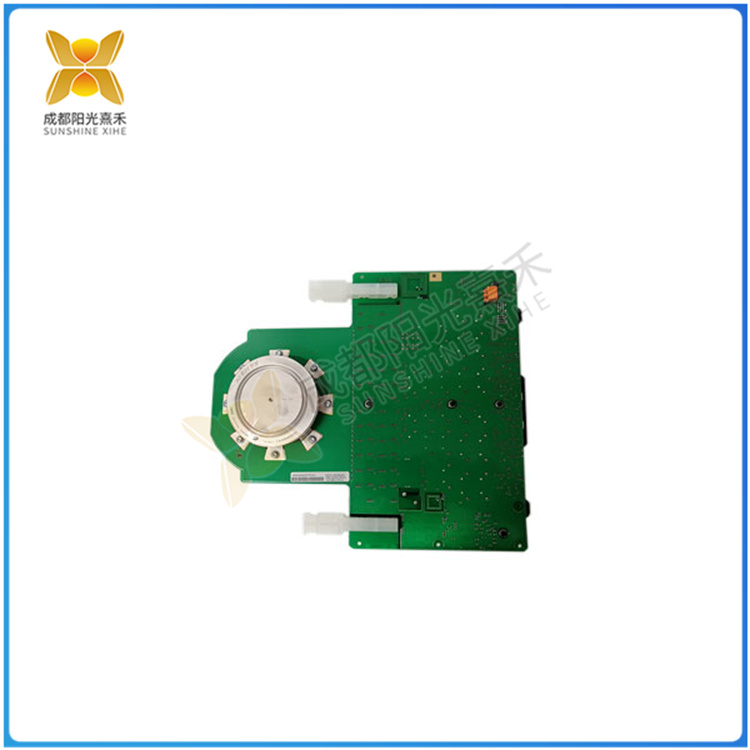

5SHX1445H0002 3BHL000387P0101 驅動板模塊
5SHX1445H0002 IGBT系列高頻驅動板，主要采用SG3525A作為PWM脈沖形成,
輸出脈沖頻率范圍20KHZ–60KHZ,脈沖間隔互為180度,死區時間可以自行調整。
5SHX1445H0002可適用于IGBT全橋逆變串聯諧振感應加熱裝置調頻調功。功率范圍:10KW–1 20KW,該控制板接線少,控制集中,沒有調試,
工作電源電壓為三路交流雙18V/1A及四個22V/0.5A的電源。
5SHX1445H0002具有過流，過壓,卻水,多種狀態指示,并提供開關型霍爾保護接口和線性霍爾保護接口,有全橋逆變IGBT驅動電路,此板可
直接組裝IGBT高頻感應加熱裝置。
>>>>>型號:5SHX1445H0002 3BHL000387P0101 驅動板模塊
【英文介紹】
5SHX1445H0002 3BHL000387P0101 driver module
5SHX1445H0002 IGBT series high frequency driver board, mainly using SG3525A as PWM pulse formation,
The output pulse frequency range is 20Khz-60khz, the pulse interval is 180 degrees each other, and the dead time can be adjusted by itself.
5SHX1445H0002 can be applied to frequency and power regulation of IGBT full-bridge inverter series resonant induction heating device. Power range :
10KW - 1 20KW, the control board wiring is less, centralized control, no debugging, the working power supply voltage is three AC double 18V/1A and
four 22V/0.5A power supply.
5SHX1445H0002 has over current, over voltage, but water, a variety of state indicators, and provides switching type Hall protection interface and linear
Hall protection interface, a full bridge inverter IGBT drive circuit, this board can be directly assembled IGBT high frequency induction heating device.
