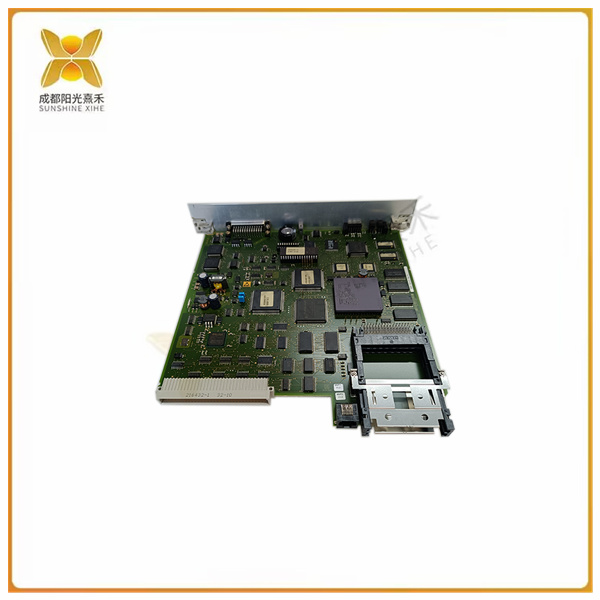

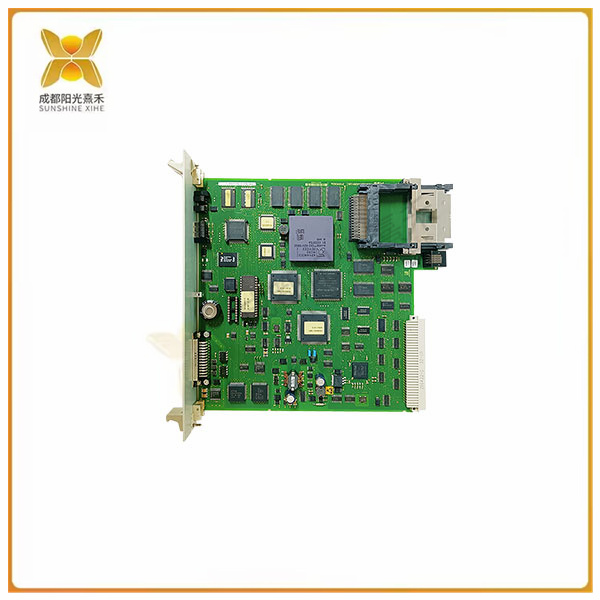

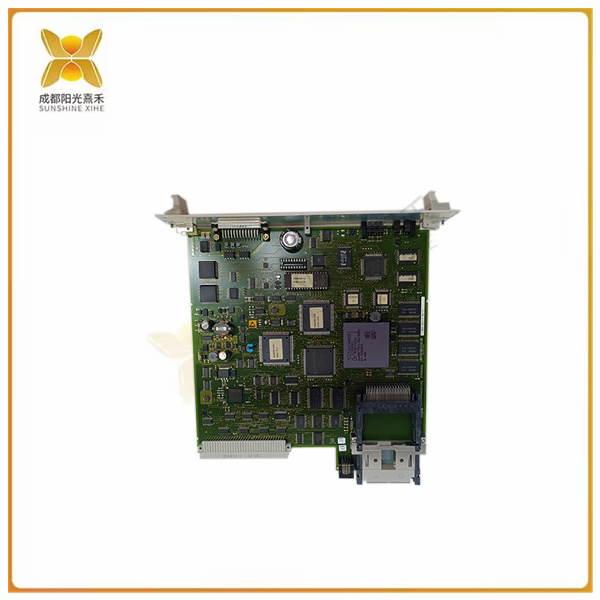

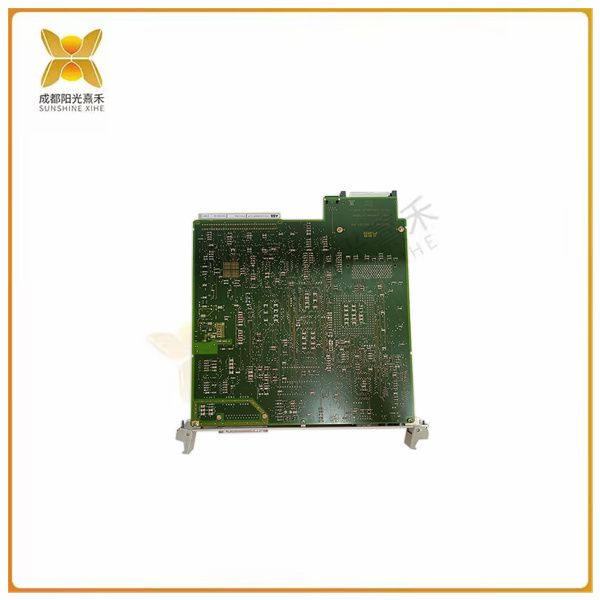

>>>>>型號:216VC62a 具有保護功能 輔助供應單元的整個系統
【功能描述】
REG216軟件系統提供了一個具有保護功能。功能適用于發電機和變壓器保護詳見下表?？蛇x擇不同程度的冗余ted。保護的可用性和可靠性可根據應用情況選擇
復制，例如輔助供應單元的整個系統。標準接口使REG216兼容不同的過程控制系統。數據交換與更高的過程控制級別是可能的，例如單向報告數字狀態和事件，測量值和
保護參數。
REG216和REG216 Classic與
對于二進制過程連接:
—REG216采用E/ a模塊216GD61a。
—REG216 Classic使用這些模塊
216GE61 / 216GA61和216GA6
?模塊化硬件
?可選擇的保護功能
?多種應用
?菜單輔助設置與PC
?全數值信號處理
?硬件的連續自我監控
?循環測試?yán)檀蠖鄨?zhí)行
通過軟件
?參數設置和記錄
PC設置
?顯示測量值
?事件的顯示及其確認
和打印輸出
?擾動記錄
?自我解釋
?長期穩定
與車站控制部門進行溝通和協調
?兩種設計版本可供選擇;REG216 /
REG216經典。
REG216用于保護以下設備
發電機和變壓器。采用模塊化的硬件和軟件設計
允許非常靈活的安裝。簡單地適應pri系統的大小和所需的保護
方案通過軟件庫和硬件的結合實現模塊。因此，經濟解決方案可以是
實現了全方位的應用這是它的本意。
>>>>>型號:216VC62a 具有保護功能 輔助供應單元的整個系統
【英文介紹】
The REG216 software system provides a protection feature. Features applicable to generator and transformer protection are detailed in the table below . Varying degrees of redundancy are available ted. Protection Availability and reliability can be selected according to the application
Copy, for example, an entire system of auxiliary supply units. The standard interface makes the REG216 compatible with different process control systems. Data exchange is possible with higher levels of process control, such as one-way reporting of digital status and events, measured values and values
Protection parameter.
REG216 and REG216 Classic vs
For binary procedure join:
- REG216 uses E/ a module 216GD61a.
- REG216 Classic uses these modules
216GE61/216GA61 and 216GA6
? Modular hardware
? Selectable protection features
? Multiple applications
? Menu assist Settings with PC
? Full numerical signal processing
? Continuous self-monitoring of hardware
? Loop test routines are mostly executed
By software
? Parameter setting and recording
PC Settings
? Display the measured value
? Display of events and their confirmation
And print out
? Disturbance recording
? Self-explanation
? Long-term stability
Communicate and coordinate with station control
? Two design versions are available; REG216 /
REG216 Classic.
The REG216 is used to protect the following devices
Generators and transformers. Modular hardware and software design
Allows very flexible installation. Simply accommodate the size of the pri system and the protection required
The scheme realizes the module through the combination of software library and hardware . So the economic solution could be
It's a full range of applications and that's what it's meant to be.
